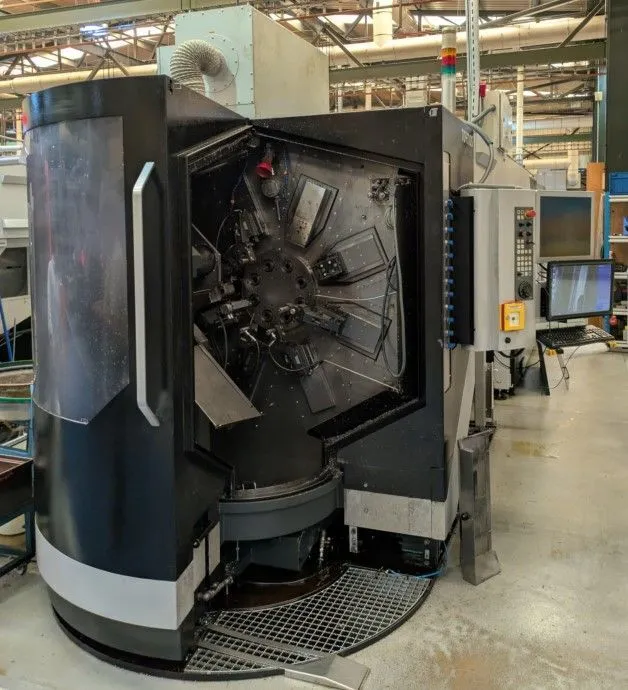

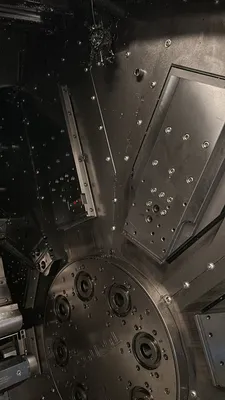

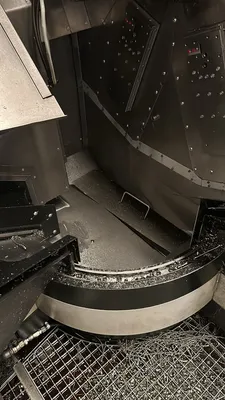

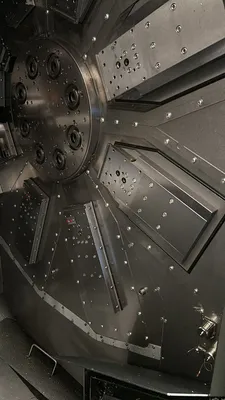

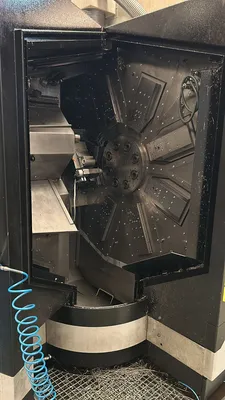

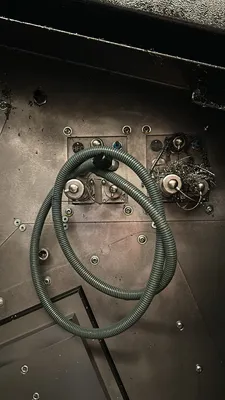

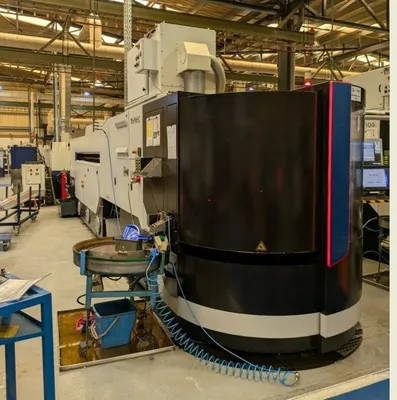

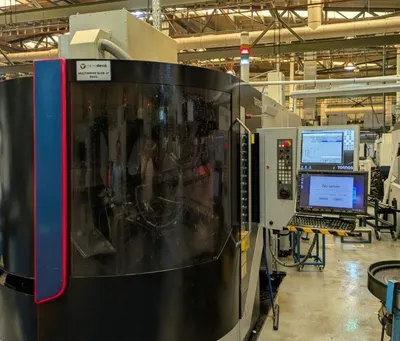

TORNOS MULTI-SWISS 8X26, Mfd. 2018

Description

MultiSwiss 8x26 with 3 Y axes

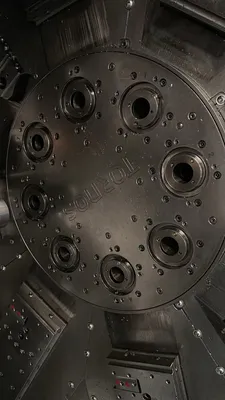

8 motor spindles, 11 kW – max. 8,000 rpm
Spindle capacity 26 mm, Z stroke 75 mm
(maximum part length 65 mm)
5 X slides in positions 1-2-3-7-8
stroke 80 mm
3 X-Y slides in positions 4-5-6
X stroke 55 mm, Y +/-16.5 mm
Counter-spindle 11 kW – max. 8,000 rpm
Z stroke 150 mm, X stroke 170 mm

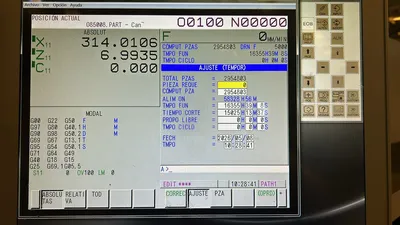

Fanuc 30iB CNC control
Integrated PC with 17" screen
TB DECO programming system
Independent C axis on all spindles
in main and counter-operation
Use of reduction tube not required
for 26 mm diameter bars
(guide tube mandatory for all diameters)
(requires 0060 or 0065 or 0070 or 0075)

277-0065
Motorized counter-operation, GWS type
support for 2 VDI-25 quick-change systems
up to 5 presettable tools in total,
of which max. 2 powered tools
(factory installed only)
(incompatible with 0060, 0070, 0075)

277-0090
Remnant ejection, max. 135 mm

277-0100
Pneumatic part ejection for parts
with max. length 65 mm

277-0220
Active GWS feeding device

277-0300
Oil retention tank
inside the machine with grid

277-0400
Signal lamp

277-0505
Operating instructions in Spanish

277-0705
Machine CNC language in Spanish

277-0751

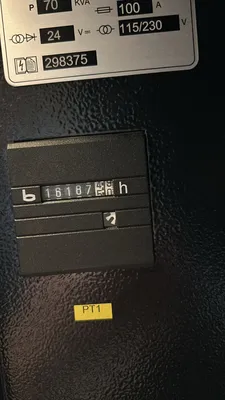

Voltage 380–420 V, 50 Hz +/- 5%

277-3001
Container
Electrical cabinet
2,000-litre oil tank
Cooling pump, 140 l/min, 4 bar
Paper filtration system, 50 µm
Hydrostatic filtration system, 5 µm
Hydrostatic unit
Bar feeder L = 3 m, Ø 5 to 26 mm
with magazine for between 34 and 225 bars
(depending on diameter)

277-3010
High-pressure pump, 37 l/min, 40 bar

277-3020
High-pressure pump, 36 l/min, 80 bar

277-3044
11 kW frequency converter
for hydrostatic circuit pump
requires 3001

277-3048
Programming box for frequency converter
requires 3040 or 3042 or 3044

277-3050
HP adaptation for counter-spindle ejector
requires 3010 or 3020

277-3150
Paper chip recovery tank

277-3200
Chip conveyor with belt ***
with pump

277-3250
Chip bin for conveyor ***
requires 3200

277-3500
Spare paper roll for filtration system

277-3510
Spare cartridge for hydrostatic unit filter
5 µm

277-3520
Spare cartridge for safety filter
for hydrostatic unit
20 µm

277-3605
38 kW cooling unit
integrated in container

277-3700
KRAFT & BAUER fire extinguishing system ***
with mechanical integration and interface
CO₂ extinguishing
Use with centralized extraction
TORNOS recommends installing a fire damper
inside the extraction duct

277-3800
Oil mist extractor
2,500 m³/h
Electrostatic filter
