Used 2021 DAVENPORT Hybrid | Multi-Spindle Screw Machines (CNC)

Description

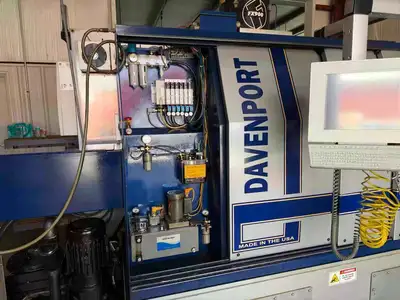

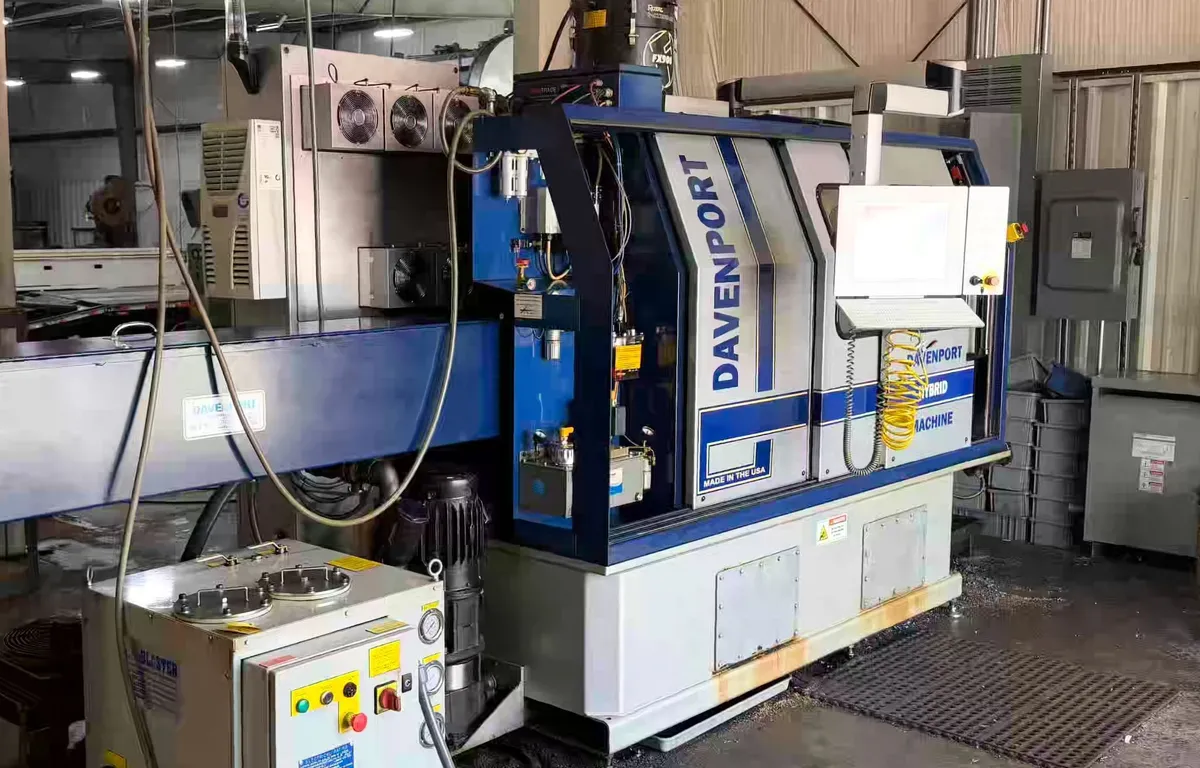

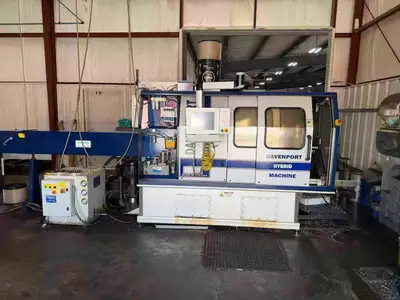

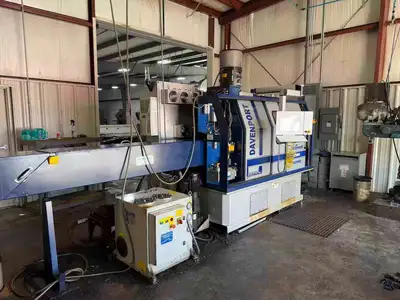

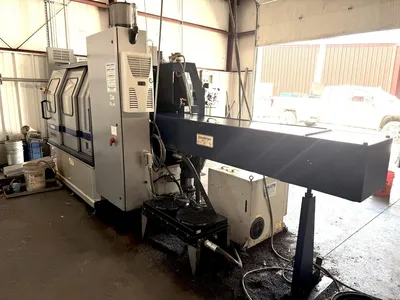

Davenport Hybrid CNC Multi-Spindle

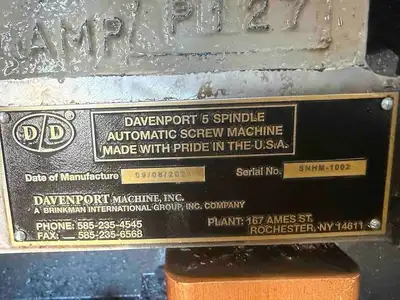

Serial Number: SNHM-1002
Date of Manufacture: 09/08/2021

Equipped With:

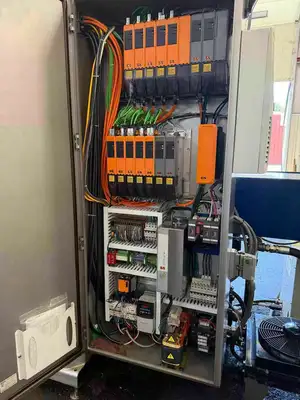

Davenport Hybrid CNC control with B&R touchscreen operator interface

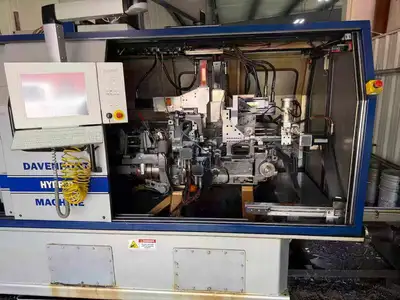

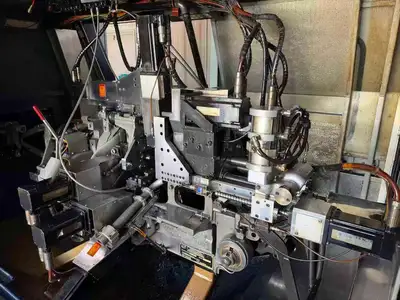

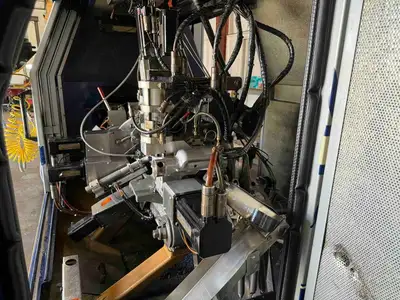

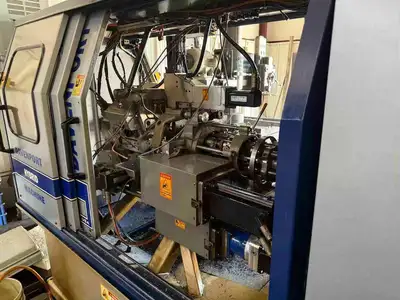

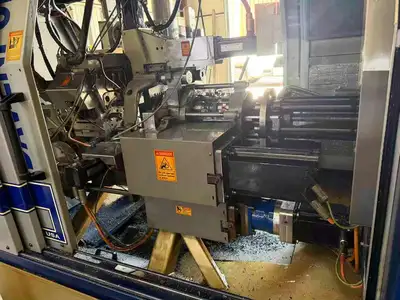

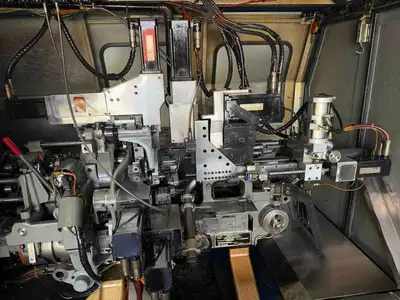

CNC-controlled tooling

CNC subspindle / pick-off with X and Z control

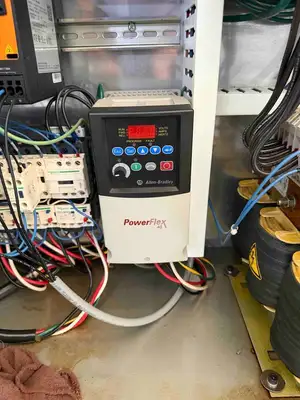

Allen-Bradley PowerFlex 40 variable frequency drive

Stock reel / stock carrier

Chip conveyor

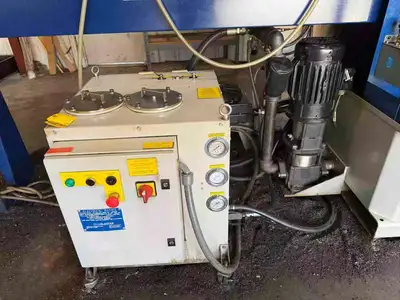

Coolant system with separate coolant tank

Mist collector

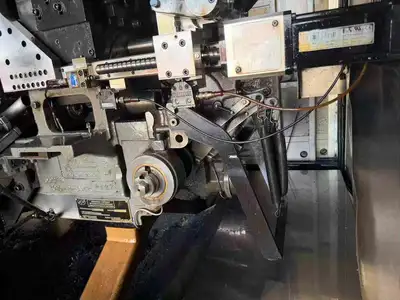

Pick-off / deburring spindle

Servo-driven tooling

Full machine enclosure

Control Counter Readings:

Power Up Hours: 4,316

Hours of Operation: 7,978

Counter readings shown on Davenport control; definitions to be verified

Standard Davenport Hybrid Specifications
Machining Capacity

Maximum Turning Length: 3.0" (76.2 mm)

Number of Main (Work) Spindles: 5

Main Spindle Speed Range: 0–3,800 RPM

Spindle Indexing Time: 0.3 seconds minimum, variable

Stock Depletion Sensor: Yes

Burring Spindle Sensing Mechanism: Yes

Bar Capacity

Maximum Round: 0.875" (22.2 mm)

Maximum Hex: 0.750" (19.1 mm)

Maximum Square: 0.625" (15.9 mm)

Minimum Bar Capacity: 0.187" (4.8 mm)

Tooling

Independent Longitudinal Tool Stations: 5

Cross Slides: 3

Tool Arms: 2

Tooling Positions: 9, plus attachments

Pick-Off / Backworking

Spindle Pick-Off and Deburring: Yes

Maximum Pick-Off Diameter: 0.875" (22.2 mm)

Tools Servicing Pick-Off Spindle: 1

Two tools available with optional Two Position Backworking configuration

Control

Davenport Machine PC & Touch Display

Utilities

Minimum Shop Air Pressure: 90 PSI

Air Requirement: Up to 20 CFM, option dependent

Total Power Requirement: 28,800 Watts

Machine Dimensions

Approx. Machine Dimensions: 9'4" L x 4'8" W x 8'10" H

Machine Weight: Approx. 7,700 lbs.

Stock Carrier

Approx. Dimensions: 10'4" L x 11-1/2" W x 11-1/2" H

Approx. Weight: 225 lbs.

Stock Carrier Cover

Approx. Dimensions: 8'6" L x 19" W x 21" H

Approx. Weight: 250 lbs.

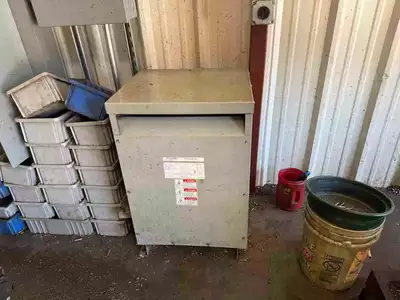

Transformer, If Required

Approx. Dimensions: 16" L x 28" W x 32" H

Approx. Weight: 325 lbs.

Installation Area

Recommended Clear Area: 29' L x 15' W x 10' H

Standard specifications taken from Davenport Hybrid machine manual. Machine-specific configuration and options subject to verification.
