Used 2014 TORNOS MULTISWISS 6X14 | Multi-Spindle Screw Machines (CNC)

Description

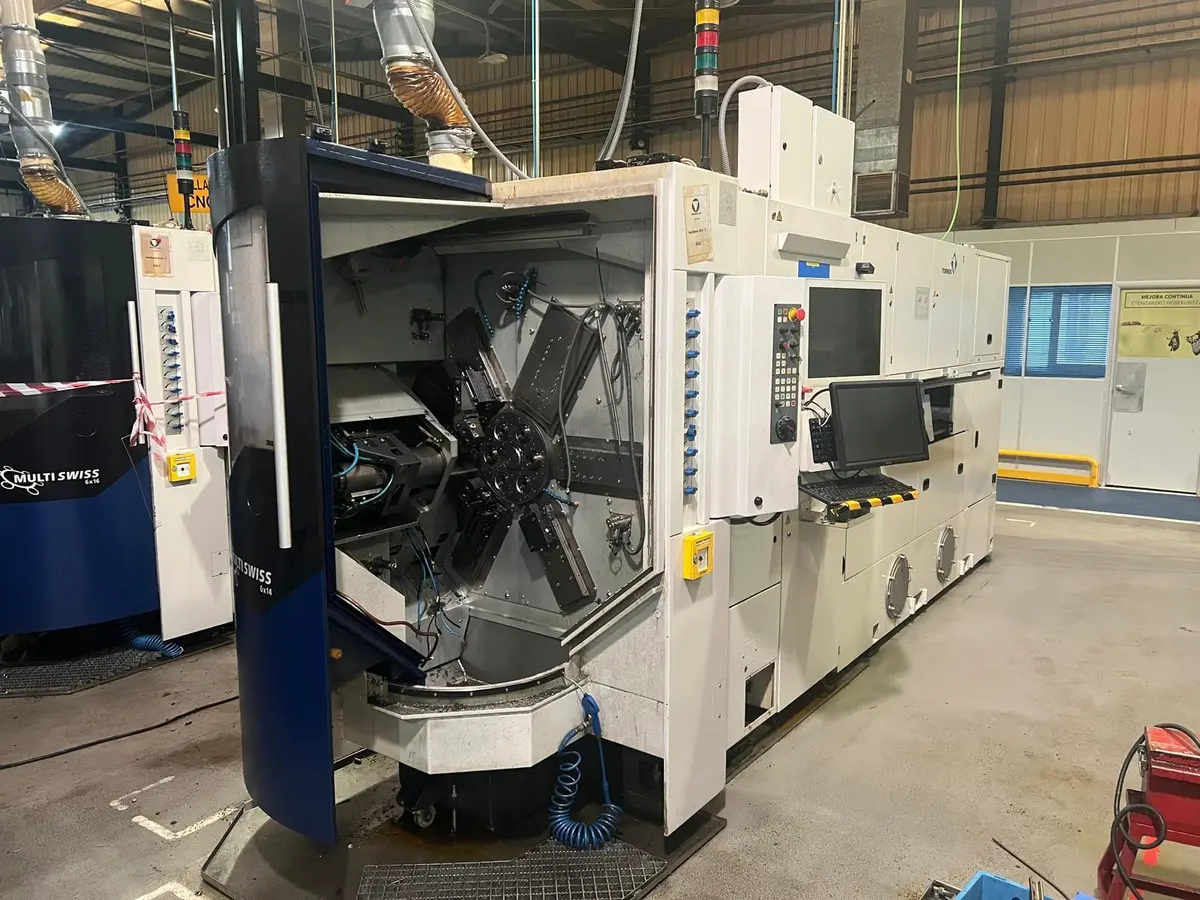

Tornos MultiSwiss 6x14 CNC Multi-Spindle
Mfd. 2014
Bar passage diameter: 4 mm to 14 mm (Expands to 16mm)
Max part length: 40 mm
Max outstanding length: 70 mm
Spindle speed: 0 to 8,000 rpm (main and back spindles)
Spindle power/torque: 5.6–6 kW and 7.5 Nm [1, 2, 3]
Bar feed: 1.5 Meters (4.92 ft)
Tooling and Axes
Total axes: 20 axes
Spindles and slides: 6 spindles, 1 back spindle, 6 cross slides
Max tools: Up to 18 total tools, including up to 2 on the back spindle [1]
Physical Dimensions and Power
Machine weight: Approximately 7,000 kg
Dimensions (L x W x H): 5,920 mm x 1,440 mm x 2,120 mm
Electrical requirement: 3 x 400 V, 50 Hz, 70 kVA [1]
