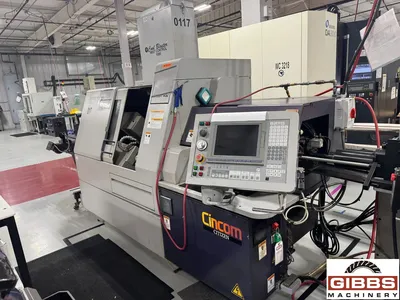

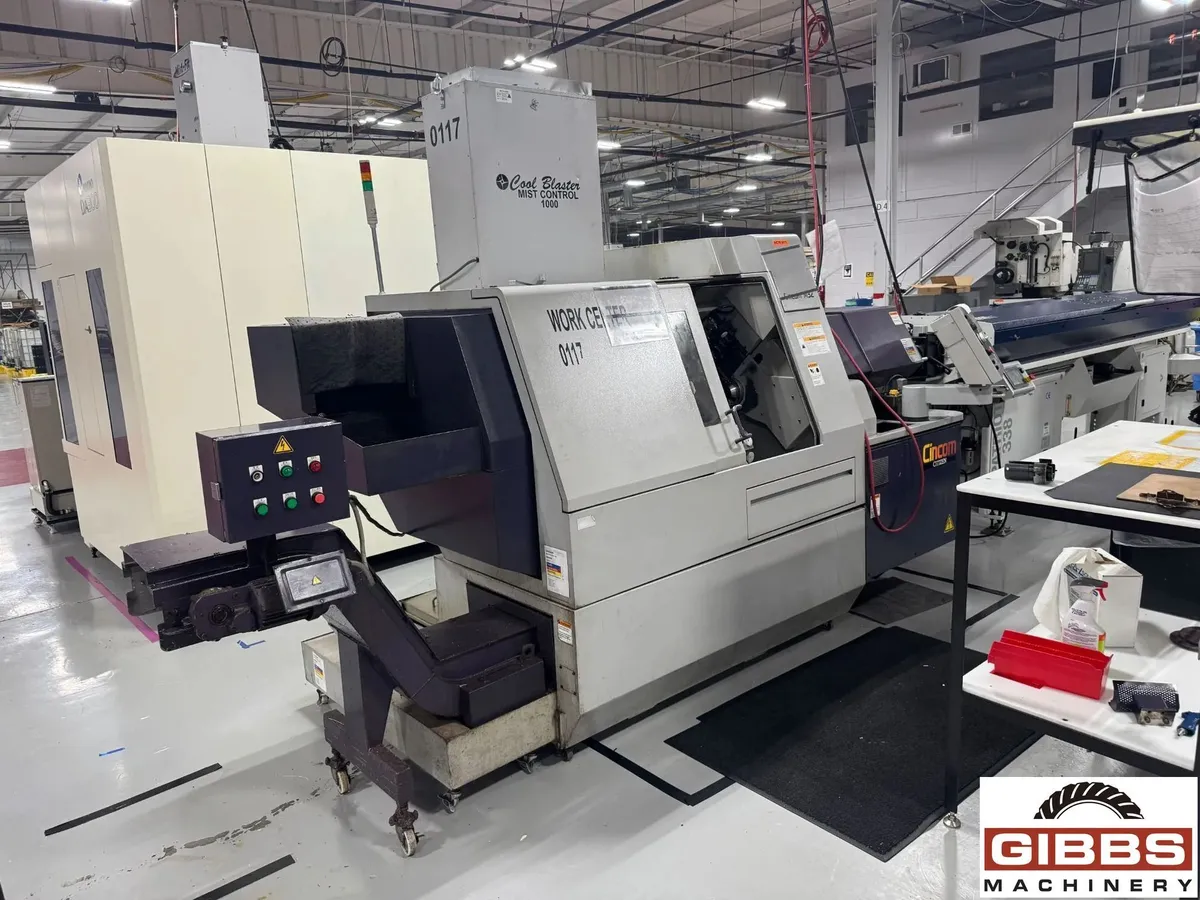

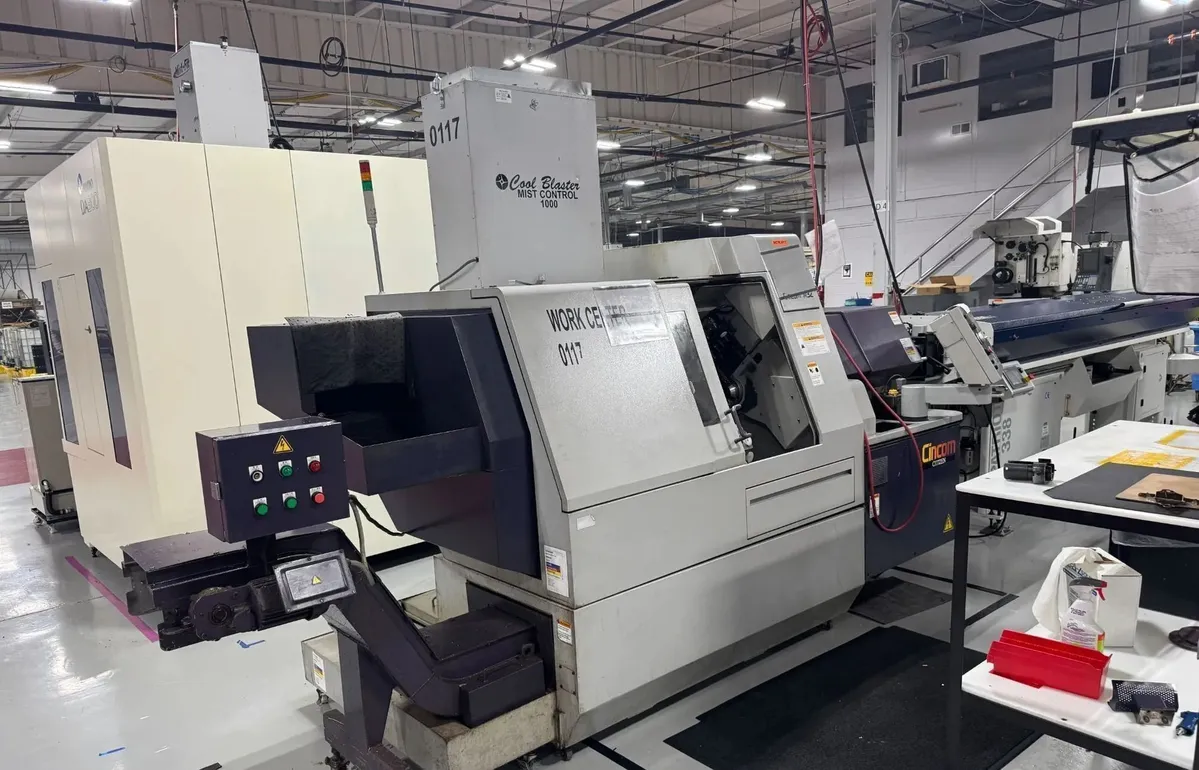

Used 2006 CITIZEN M-32-III | CNC Swiss Lathe

Description

Equipped With:

Bar feeder
Large Assortment of Tooling and Perishables
Chip Conveyor
High Pressure Coolant
Mist Collector

Specifications:

Max Workpiece Diameter

1.26"

Max Workpiece Length

12.6"

Max X-Axis Travel

7.48"

Max Y-Axis Travel

4.33"

Max Z-Axis Travel

12.6"

Spindle Hole Dia

1.2598"

RPM

8,000 RPM

Power

10 hp

# Axis

10

Capacity

1.26"

Control

CNC

Dimensions

130 x 59 x 95 inches

Weight

9350 lbs

Specifications:

Maximum Machining Diameter: 32 mm
Maximum Machining Length: 320 mm
Maximum Front Drilling Diameter: 12 mm
Main Spindle Speed: 8,000 RPM
Maximum Length of Back Spindle Workpiece: 145 mm
Rapid Feed Rate:
-X1, Y1, Z1, Z2, & Z3: 32 m/min
-X2: 18 m/min
-Y2: 12 m/min
Front Spindle Drive Motor: 5.5/7.5 kW
Back Spindle Drive Motor: 5.5/7.5 kW
Main Machine Unit Dimensions: 130" x 59" x 95"
Approximate Machine Weight: 9,350#
