Used 2019 MAZAK i200S | Mill Turn

Description

Mazak Integrex i-200S
Mfd. 2019

Power on: 13822 hrs
Auto OPE: 3713 hrs
Auto Cut: 3070 hrs
Total Time: 13822

SPECIFICATIONS:
MAX SWING...............................25.91"
MAX TURNING DIAMETER....................25.91"
MAX TURNING LENGTH......................39.8"
X-AXIS TRAVEL...........................24.21"
Z-AXIS TRAVEL...........................42.4"
Y-AXIS TRAVEL...........................10.24"
W-AXIS TRAVEL...........................41.97"
MAIN SPINDLE BAR CAPACITY...............2.56"
MAIN SPINDLE CHUCK SIZE.................8"
MAIN SPINDLE SPEED......................5,000 RPM
MAIN SPINDLE NOSE.......................A2-6
MAIN SPINDLE C AXIS.....................0.001 DEGREE INCREMENTS
SUB SPINDLE BAR CAPACITY................2"
SUB SPINDLE CHUCK SIZE..................8" CHUCK
SUB SPINDLE SPEED.......................5,000 RPM
SUB SPINDLE NOSE........................A2-6
SUB SPINDLE C AXIS......................0.001 DEGREE INCREMENTS
MILLING SPINDLE MOTOR...................30 HP
SPINDLE TAPER...........................CAPTO C6
MILLING SPINDLE RPM.....................12,000 RPM
NUMBER OF TOOL STATIONS.................36 TOOL ATC
RAPID TRAVERSE RATE (X/Z)...............1,969 IPM
RAPID TRAVERSE RATE Y-AXIS..............40 IPM
RAPID TRAVERSE RATE W AXIS..............30 IPM
MAXIMUM TOOL DIAMETER...................4.92"
MAXIMUM TOOL LENGTH.....................15.75"
DIMENSIONS..............................157" X 110" X 107"
WEIGHT..................................28,881 LBS

EQUIPPED WITH:
Mazatrol Smooth X CNC Control
(2) 8" Chucks
Sub-Spindle

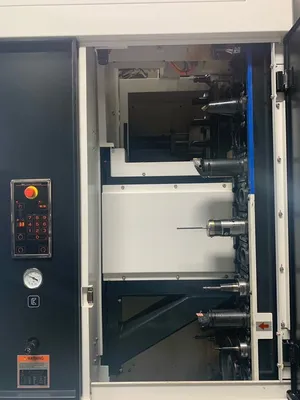

36 Station ATC
12,000 RPM Milling Spindle
5-Axis Machining Package
Gear Hobbing & Milling Software
Renishaw RMP-600 Work Measuring System Probe
Approx. $40K in Tooling Included with Sale
