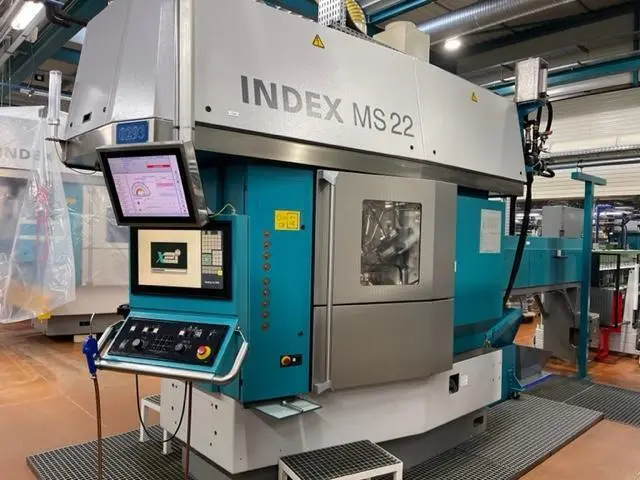

Used 2017 INDEX MS22-6 | Multi-Spindle Screw Machines (CNC)

Description

Mfd. 2017
Configuration: 2-Synchron (Dual Counter-Spindle)
Production Hours: 20,000

Overview
Well-equipped and maintained INDEX Werke MS22-6 configured for high-precision production, including medical components. This machine features a robust Siemens control platform, dual counter-spindles, and extensive automation for efficient, lights-out capable operation.

Control & Technology

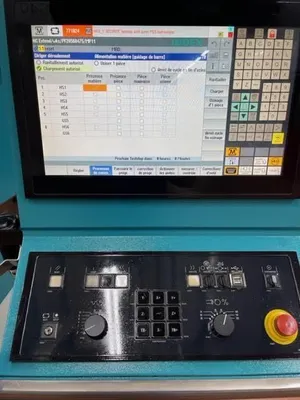

• Siemens 840D SL CNC control
• Dual NCU (Numerical Control Units)
• TRANSMIT / TRACYL functions
• ARTIS tool monitoring system
• 2 additional electronic shaft preparations

Configuration & Equipment

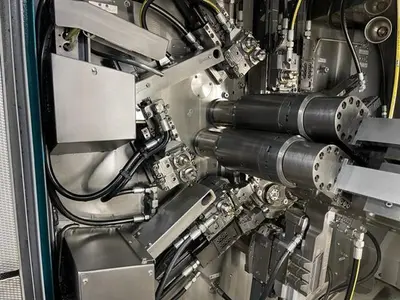

• 6 main spindles
• 2 SCARA counter-spindles
• 2 parts catchers with conveyor belt
• Bar scrap recuperator
• INDEX bar guide system

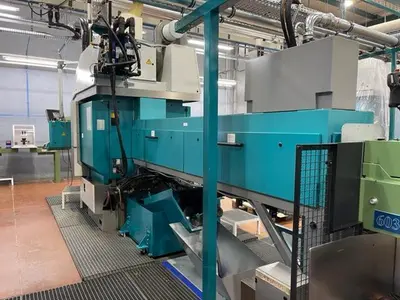

• IEMCA PRA bar loader
• Bar feeder interface
• Fire protection system

Capacity & Performance
• Max. bar diameter: 22 mm
• Spindle speed: 10,000 rpm
• Spindle power: 8.7 / 15 kW
• Torque: 10 / 18 Nm

Axes & Travels
• Total slides: 10
• Main slides travel (X/Z): 62 / 85 mm
• Counter-operation slides: 2
• Counter slide travel (X): 62 mm

Additional Specifications
• Number of counter-spindles: 2
• Counter-spindle speed: 10,000 rpm
• Machine dimensions (L x W x H): 3330 x 1830 x 2860 mm
• Weight: 5,700 kg
• Connected load: 75 kVA

Applications
• High-precision medical components
• Complex turned parts requiring multi-operation efficiency
• Ideal for high-volume production environments
