Used 2021 EMAG VMC 450 MT | Vertical Machining Centers

Description

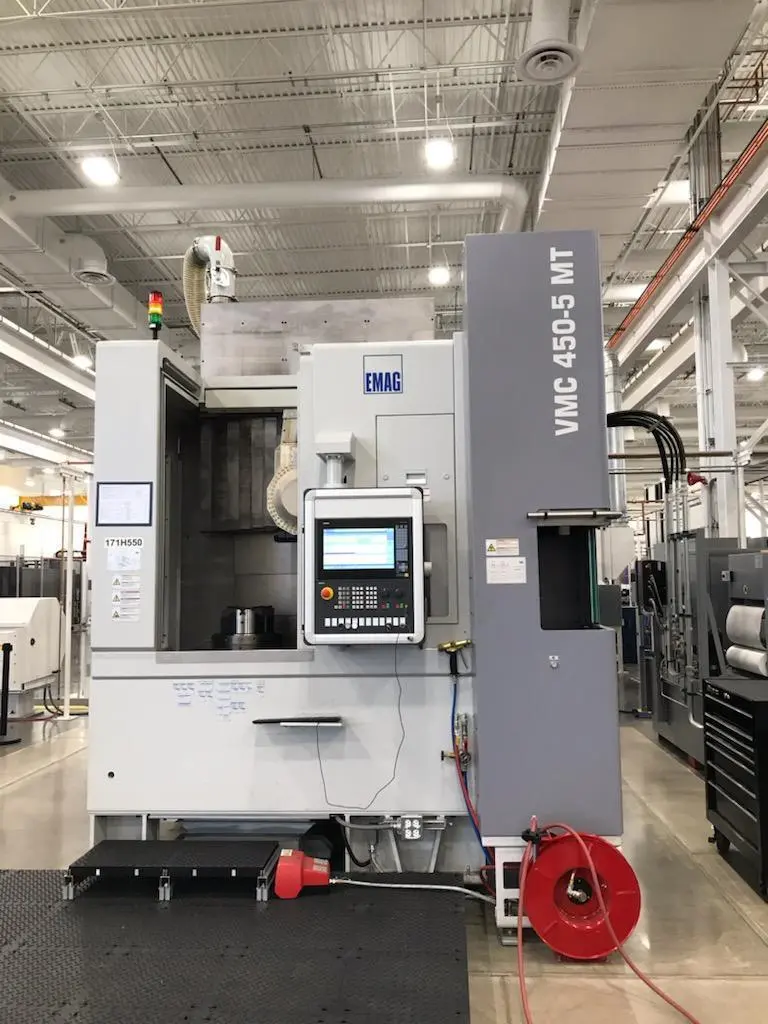

EMAG VMC 450 MT
Mfd. 2021

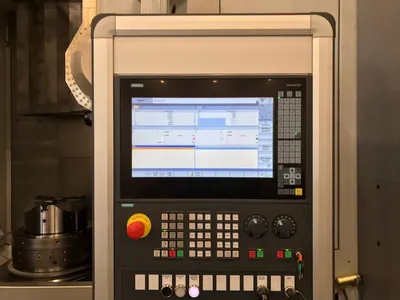

Control: Siemens 840D SL
Machine has no production hours

Description
CHUCK DIAMETER: 24"
MAX WEIGHT: 1100 LBS.
MAX SWING DIAMETER: 31"
MAX TURNING DIAMETER: 23.5"
X STROKE: 30"
Z STROKE: 19"

MAIN DRIVE:
POWER: 100 HP
FULL POWER AT 800 RPM
MAX SPINDLE RPM: 2,000
C AXIS POSITIONIONG TO .01MM ANGULAR DEGREES

FEED DRIVE:
RAPIDS Z / Z: 60 / 30 M / MIN.
FEED FORCE X / Z 4 / 15 kN
BALL SCREW DIAMETER X / Z: 40 / 50 MM

MILLING SPINDLE:
POWER: 100 HP
MAX SPINDLE SPEED: 7000 RPM
SPINDLE TAPER: CAPTO C8
TOOL MAGAZINE: 60

EQUIPPED WITH:
MINERALIT MACHINE BED
SIEMENS 840 D SL
FULL ENCLOSURE
LEVEL PADS
TURN MILL DRIVE
EMAG WORKPIECE CORRECTION SYSTEM
EMAG OPERATING AND SETTINGS MASKS
EMAG REMOTE DIAGNOSIS

Y AXIS
B AXIS +/- 95 DEGREE

1000 PSI COOLANT THROUGH TOOL

X-AXI CLAMPING FOR GEAR TOOTH FORMING

SWARF CONVEYOR, CHAIN TYPE - REAR DISCHARGE
LIFTING PUMP
PAPER FILTER
LOW PRESSURE COOLANT
HIGHT PRESSURE COOLANT 1000 PSI
PROGRAMMABLE COOLANT PRESSURE
COOLANT MIST EXTRACTOR
AIR BLAST
CHIP FLUSH

QUALITY CONTROL:
WIRELESS GAUGING
CALIBRATION BLK FOR PROBE
TOOL GAUGING - BLUM LASER
