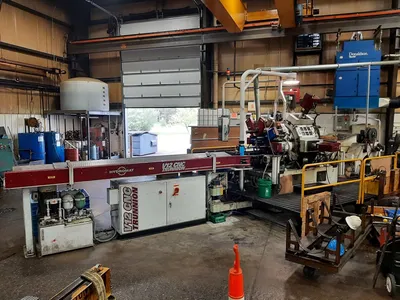

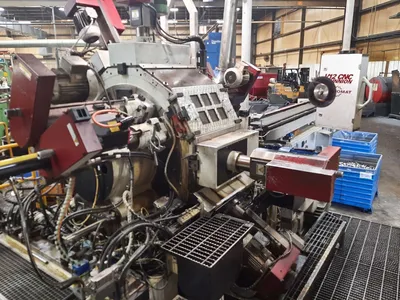

Used 2008 HYDROMAT EPIC V12-51 | Rotary, Trunnion (Horizontal & Vertical) Transfer Machines

Description

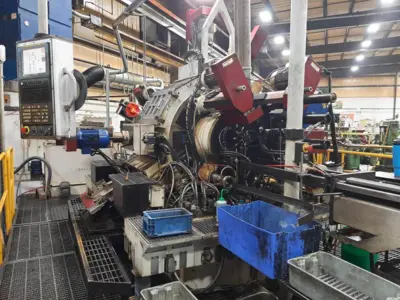

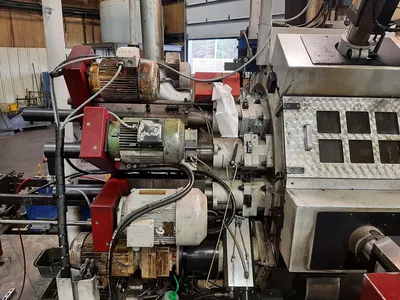

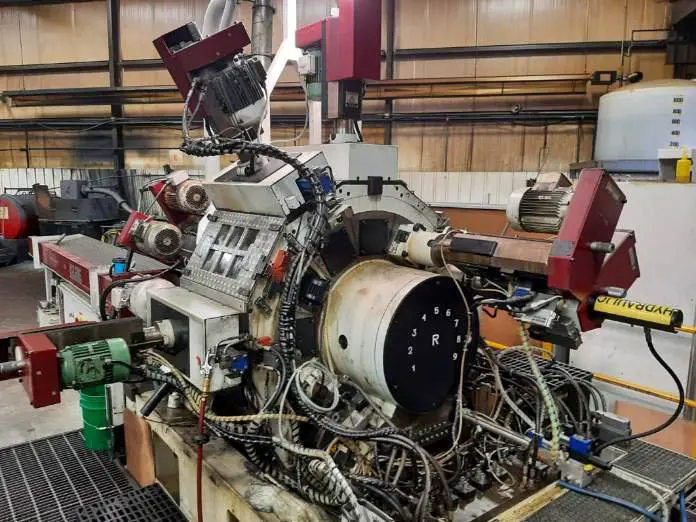

Hydromat EPIC V12-51
CNC (Trunnion style transfer machine)
Delivered 2008

Fanuc 10.4" iH Pro Touch control (i5, Windows 10)

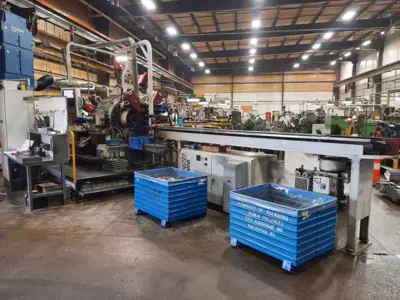

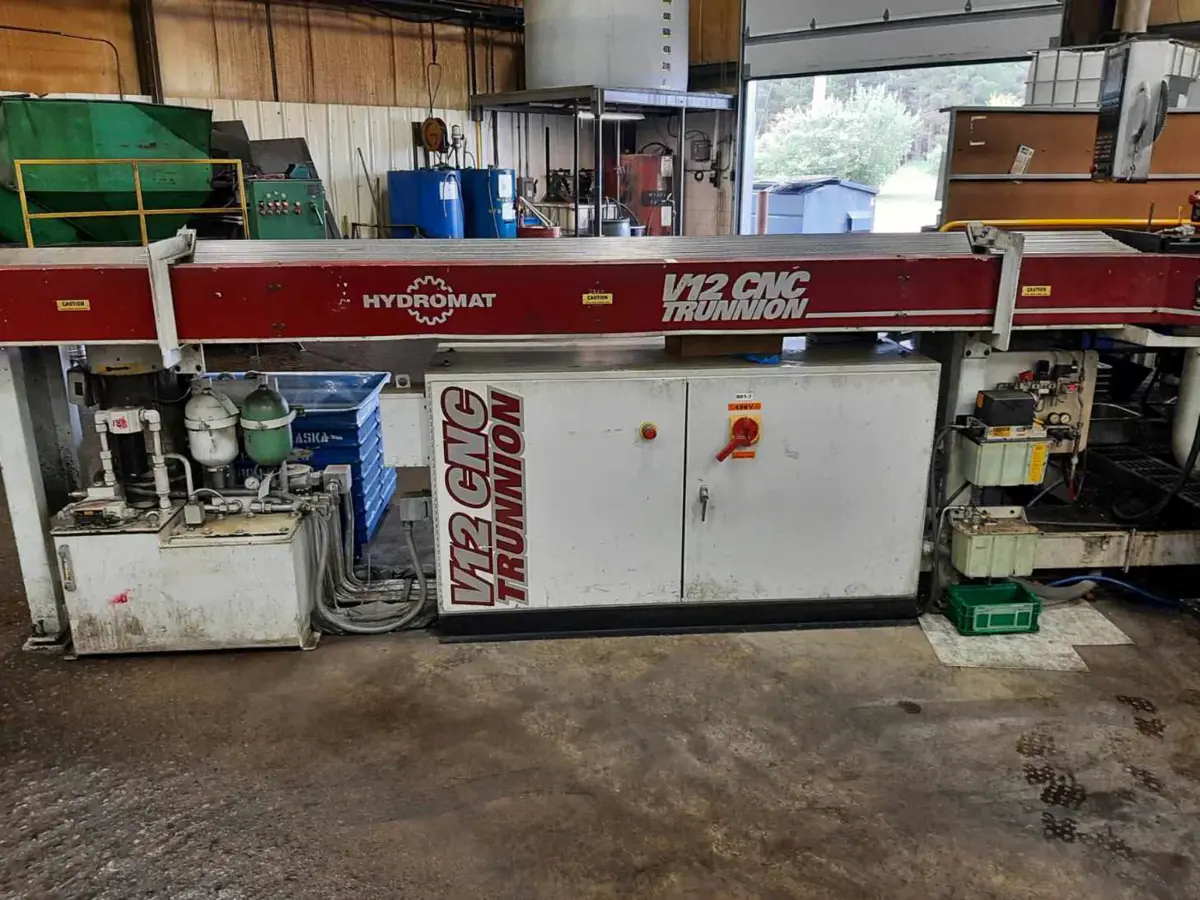

12-foot bar feeder

EPIC 36/100 pickoff subspindle with B32/45 collet for automated part transfer
Hydraulic chuck table with control pivot
Chip conveyor,
Coolant system with immersion chiller

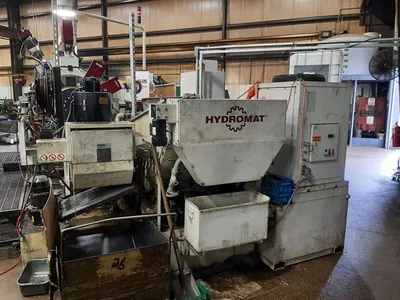

Knoll filtration unit

Station Layout:

Station 1 — Bar Load / CNC 2-Axis Cutoff
Station 2 — Drilling
Station 3 — Turn, Face & Chamfer (L & R)
Station 4 — Form Ream (L & R) / Drill Blind Hole (V)
Station 5 — Drilling
Station 6 — Drilling
Station 7 — Open
Station 8 — Drilling / Deburr Crosshole
Station 9 — Finish Milling
Station 10 — Unload / Pickoff Subspindle
