INDEX C200
Have one to sell?
ConditionUsed
1 available

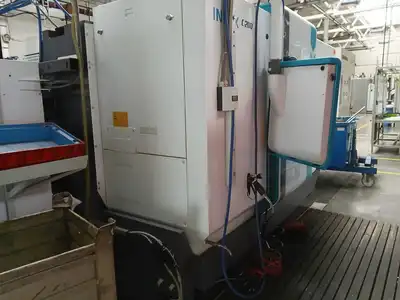

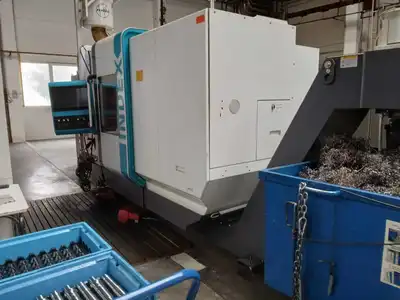

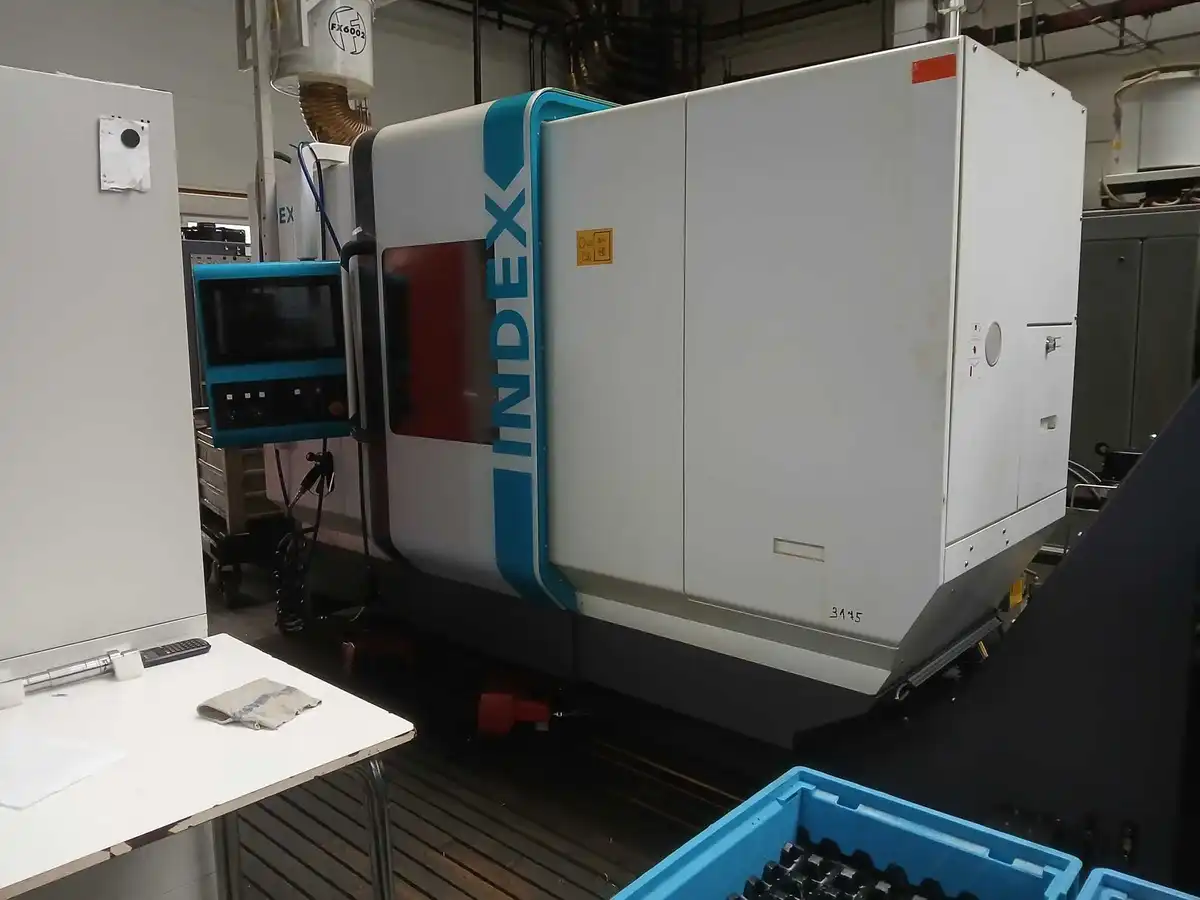

INDEX C200 Production Turning Machine
Mfd. 2022

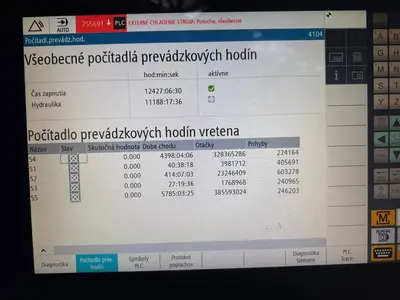

Power-on hours: ~12,427 h
Hydraulic hours: ~11,188 h
Main spindle hours: ~4,400 h
Second spindle (if S5 is counter): ~5,785 h

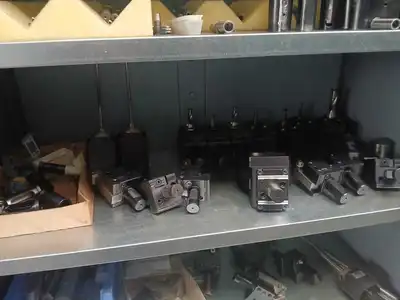

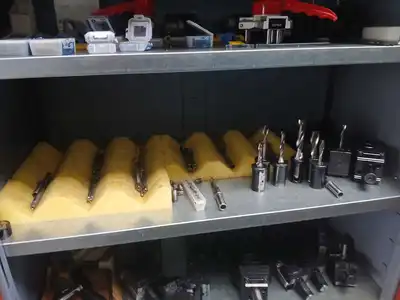

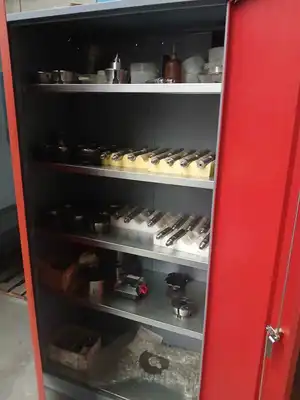

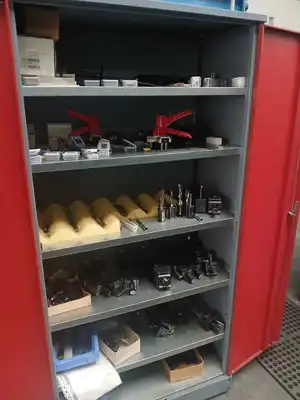

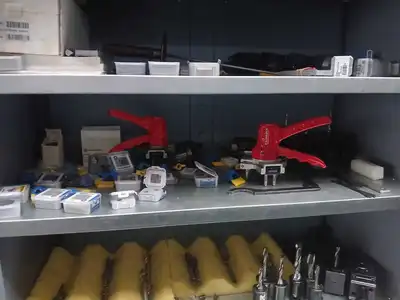

(Tooling in photos to divided between three C200 machines)

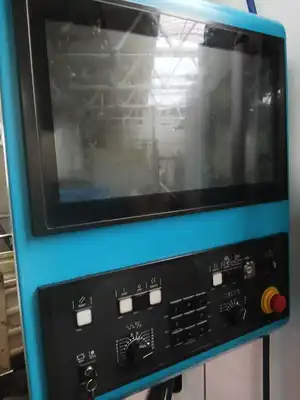

A versatile CNC production lathe featuring 3 tool carriers and the INDEX C200-sl control system, built on the Siemens Sinumerik 840D SolutionLine platform with SINAMICS S120 drives. Includes an 18.5" TFT color touchscreen display (IP65-rated front panel).

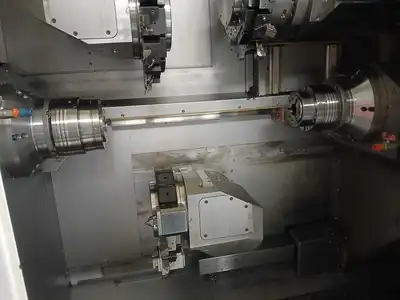

Main Spindle (D65)
Spindle head mounting: OD 140mm, ID 85mm
Controllable synchronous AC hollow-shaft motor
Hollow clamping cylinder (D65/20) for collet or chuck clamping, hydraulically actuated with clamping stroke measurement
Single pressure clamping unit with adjustable pressure (8–75 bar)
Counter Spindle (D65)
Spindle head mounting: OD 140mm, ID 85mm
Controllable synchronous AC hollow-shaft motor
Hollow clamping cylinder (D65/20) for collet or chuck clamping, hydraulically actuated with clamping stroke measurement
Z-axis slide driven by AC motor and ballscrew
Single pressure clamping unit with adjustable pressure (8–75 bar)

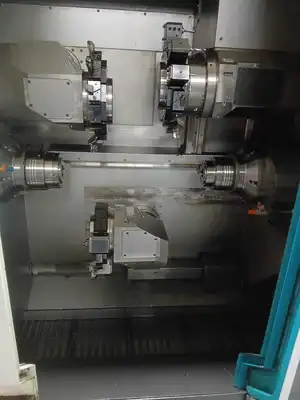

Tool Carriers (3 Total)
Each of the three tool carriers features:
14 stations with cylindrical shank mounting (D25x48, DIN 69880)
Enhanced repeatability via W-slot design
AC motor turret indexing with spur gear positioning and hydraulic locking
Live tooling capability in every station (only the tool in working position rotates)
High-pressure coolant valves

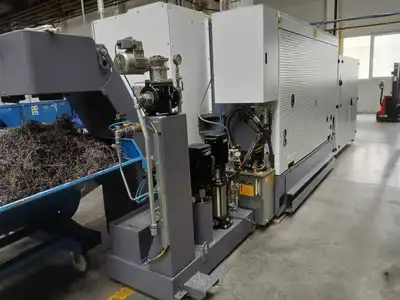

Coolant System
Coolant supply above main spindle connected to 8-bar pump with solenoid valve
INDEX C200 Production Turning Machine
Mfd. 2022
Power-on hours: ~12,427 h
Hydraulic hours: ~11,188 h
Main spindle hours: ~4,400 h
Second spindle (if S5 is counter): ~5,785 h
(Tooling in photos to divided between three C200 machines)
A versatile CNC production lathe featuring 3 tool carriers and the INDEX C200-sl control system, built on the Siemens Sinumerik 840D SolutionLine platform with SINAMICS S120 drives. Includes an 18.5" TFT color touchscreen display (IP65-rated front panel).
Main Spindle (D65)
Spindle head mounting: OD 140mm, ID 85mm
Controllable synchronous AC hollow-shaft motor
Hollow clamping cylinder (D65/20) for collet or chuck clamping, hydraulically actuated with clamping stroke measurement
Single pressure clamping unit with adjustable pressure (8–75 bar)
Counter Spindle (D65)
Spindle head mounting: OD 140mm, ID 85mm
Controllable synchronous AC hollow-shaft motor
Hollow clamping cylinder (D65/20) for collet or chuck clamping, hydraulically actuated with clamping stroke measurement
Z-axis slide driven by AC motor and ballscrew
Single pressure clamping unit with adjustable pressure (8–75 bar)
Tool Carriers (3 Total)
Each of the three tool carriers features:
14 stations with cylindrical shank mounting (D25x48, DIN 69880)
Enhanced repeatability via W-slot design
AC motor turret indexing with spur gear positioning and hydraulic locking
Live tooling capability in every station (only the tool in working position rotates)
High-pressure coolant valves
Coolant System
Coolant supply above main spindle connected to 8-bar pump with solenoid valve
