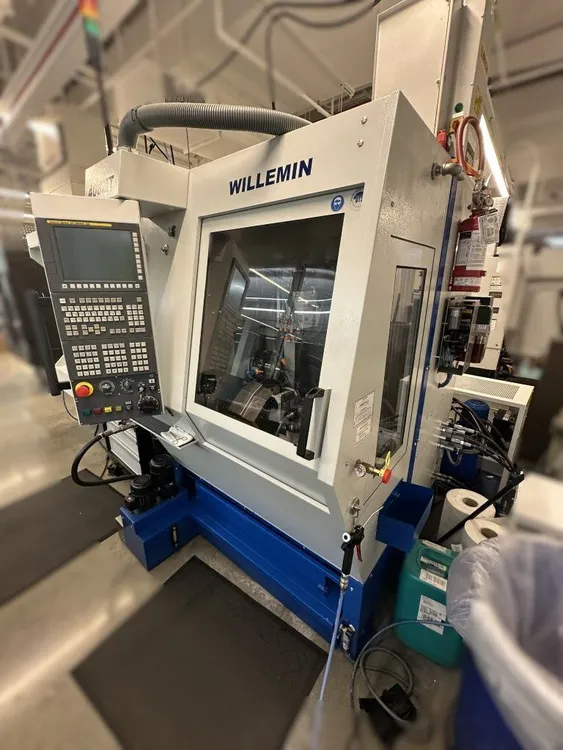

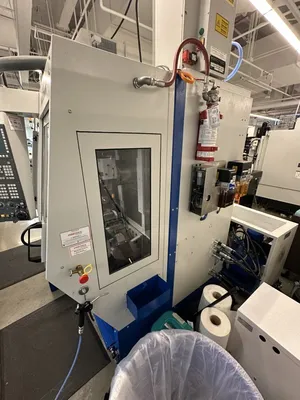

Willemin Macodel 408MT

Description

Willemin Macodel 408MT
Machine never in production!
Mfd. 2020
505 Hours

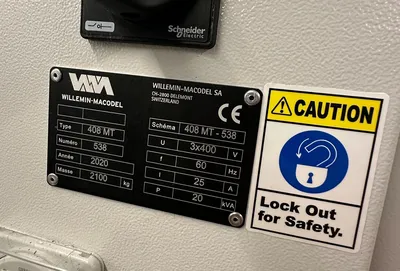

SN: 538

Schema: 408 MT-538

Premium Upgrades Included:
High-Speed Spindle Package
42,000 RPM Motor Spindle (upgraded from standard 30,000 RPM)
Air/oil lubrication system for maximum speed capability
10 kW / 13 hp power
HSK-E40 interface

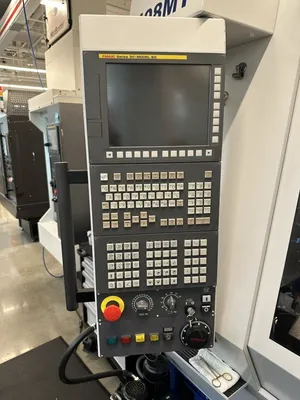

Control: Fanuc 31i-B5 with advanced software package
Total Axes: 7 (X, Y, Z, A, B, U, W)
Work Envelope: 250mm x 200mm x 300mm (X/Y/Z)
Positioning Accuracy: 0.0001mm resolution via Heidenhain scales
Tool Capacity: 48 tools HSK-E40 with dual-disc magazine

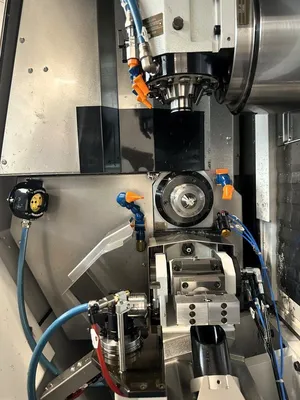

Willemin-Macodel 408MT 7-Axis Mill/Turn Center
Premium Swiss Precision Configuration with Extensive Upgrades

Advanced Machining Systems

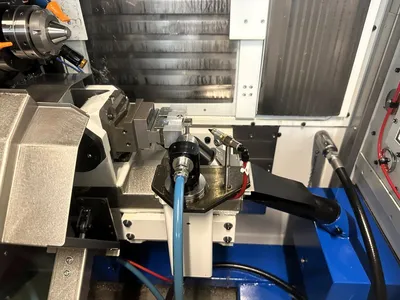

Automatic Back-Working Device (U-axis) with hydraulic vice
Bar Feed System for 500mm / 20" bar stock
Collet Chuck System (F35) for bar work up to 27mm diameter
Angular positioning W-axis (± 0.02°) for turning tools

Thermal & Environmental Controls

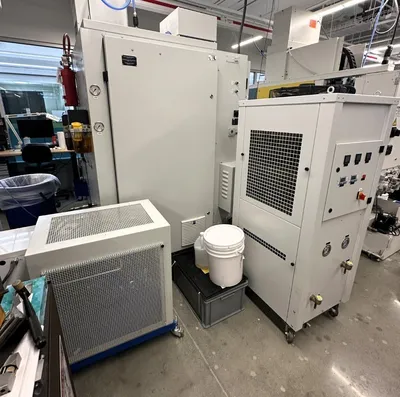

DTS Dynamic Thermal Stabilization for machine base
DTS Spindle Thermal Management
Elbaron Oil Vapor Extraction System with dual filtration
Complete thermal compensation package

Measurement & Monitoring

Renishaw TS-27R Touch Probe for tool measurement
Renishaw OMP 400 Spindle Probe for in-process measurement
Renishaw AXISET HD-TB for rotary axis calibration
Broken Tool Detection System (0.2mm minimum diameter)

Advanced CNC Features

High-Speed Machining Package (HPCC with 1,000 block look-ahead)

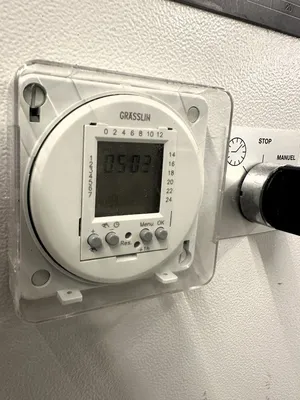

Timer Start Function for automated warm-up
Integrated Data Server with Ethernet and 1GB flash storage
Extended Program Memory (3,900 KB)
TCPC/TRC for advanced tool compensation

Medical device manufacturing
Aerospace components
High-precision contract manufacturing
Complex parts requiring minimal setups

Configuration Highlights:

Complete 7-axis simultaneous capability
Mill/turn operations up to 6,000 RPM
Bar feeding with automatic back-working
Ultra-high speed finishing (42,000 RPM)
Comprehensive thermal management
Full probing and tool monitoring
Network-ready with data server
