Used 2024 INDEX MS-22-8 | Multi-Spindle Screw Machines (CNC)

Description

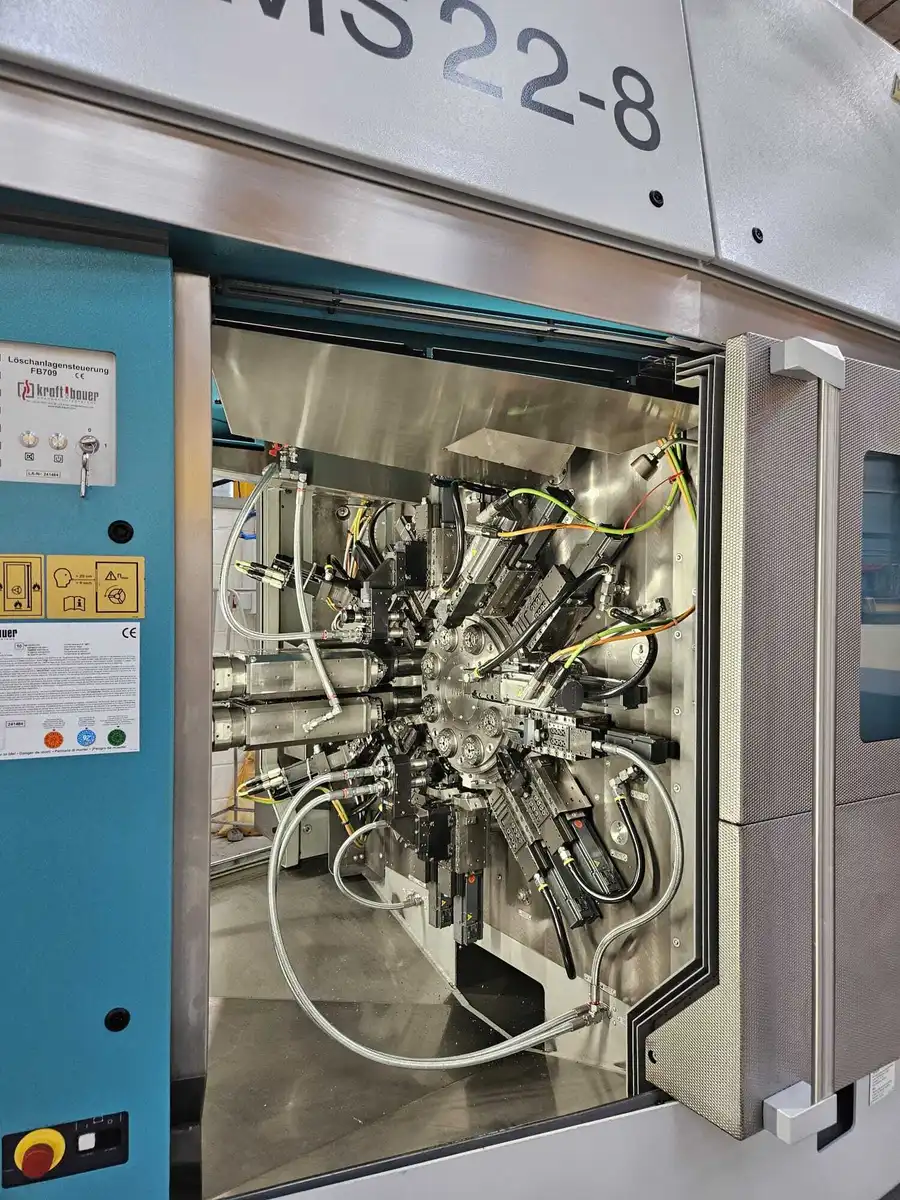

INDEX MS22-8
Mfd. 2024
2 NCU
(4) Y-Axis

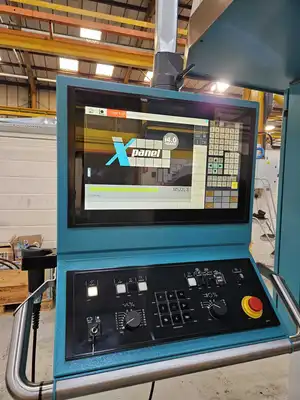

SL Control
Cutting hours: 1,000
Turnkey Available
Located in Europe

4-Meter IEMCA SIR MS22-8/43/P

Rack loader 50 Hz D9-13-19-25
Bar length 4300 mm
with drilling unit and minimum quantity lubrication unit
additional end-of-bar sensor
Bar stock 500mm (D12-D24)
Bar stock 340 mm (D5-D11).
Additional storage chain for 22 bars
with Profinet interface.

1 11007253

(21711)

1 set (8 pieces) bar stock pushers,

external clamping for bar stock diameters D7-D10 mm,

internal clamping for bar stock diameters D13-D18 mm, consisting of:

8 bar stock pushers D12
8 rotating sleeves D12

1 10287026

(21712)

1 set (8 pieces) bar stock pushers,

external clamping for bar stock diameters D11-D16 mm,

internal clamping for bar stock diameters D19-D24 mm, consisting of:

8 bar stock pushers D18
8 rotating sleeves D18

1 10536056

(21713)

1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm,

consisting of:

8 bar stock pushers D23
8 rotating sleeves D23

1 10414481

(21702)

1 set (8 pcs.) of internal clamping sleeves D12mm

for bar diameters D13 mm - D18 mm
Drill diameter D8 mm.

1 10472413

(21704)

1 set (8 pcs.) of external stops D12 mm

for bar diameters D13 mm - D18 mm
pre-machined.

1 10264327

(21703)

1 set (8 pcs.) of internal clamping sleeves D18mm

for bar diameters D19 mm - D24 mm
Drill diameter D15mm.

1 10058206

(21705)

1 set (8 pcs.) of external stops D18 mm

for bar diameter D19 mm - D24 mm
pre-machined.

1 12123486

Drill for drilling unit consisting of:

1 indexable insert drill D 15 mm
10 indexable inserts for steel
2 solid carbide drills D 8 mm
