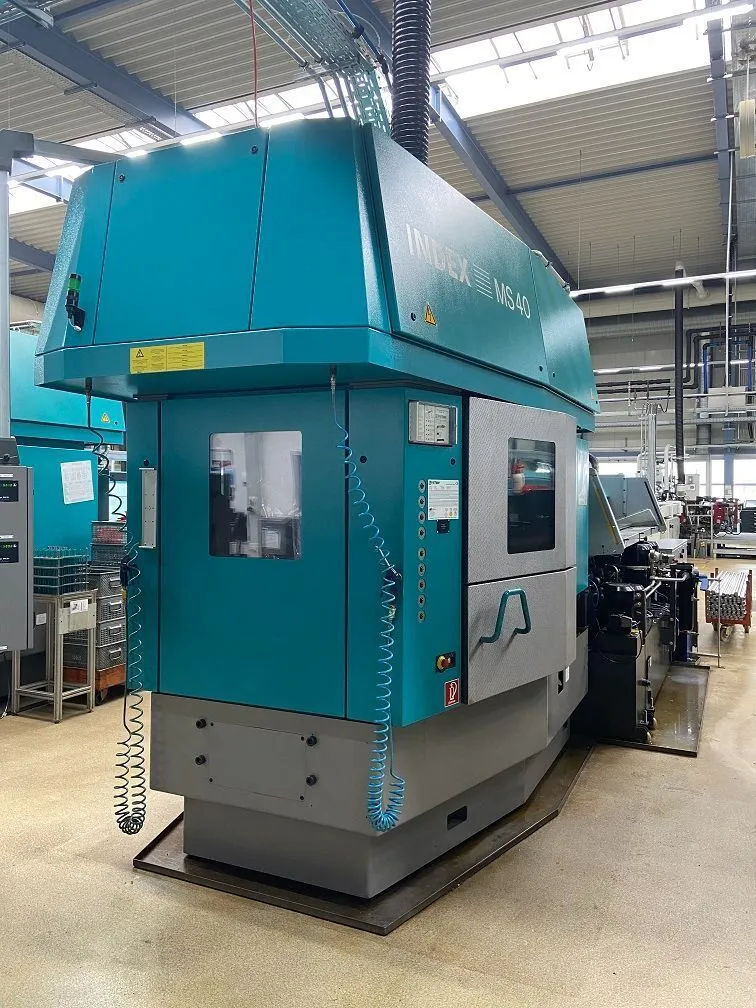

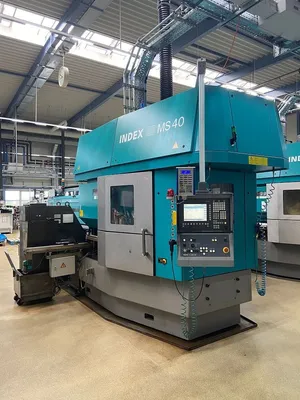

INDEX MS40-6 CNC Multi-Spindle

Description

INDEX MS40-6 CNC Multi-Spindle
Year of Manufacture: 2011
Commissioned: 2012
Control: Siemens 840D (Dual NCU)
Bar Capacity: 40 mm

Slide Units
Position 1.1: X / Z NC controlled

Position 1.2: X / Z NC controlled

Position 2.1: X / Z NC controlled

Position 2.2: X / Z NC controlled

Position 3.1: X / Y / Z NC controlled (Y ± 21 mm)

Position 3.2: X / Z NC controlled

Position 4.1: X / Z NC controlled

Position 4.2: X / Z NC controlled

Position 5.1: X / Z NC controlled

Position 5.2: X / Z NC controlled

Position 6.1: X / Z NC controlled

Position 6.2: X / Z NC controlled

Position 6.3: X NC controlled, Z fixed

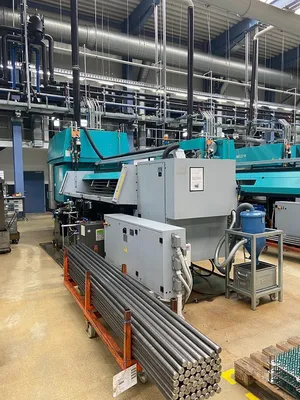

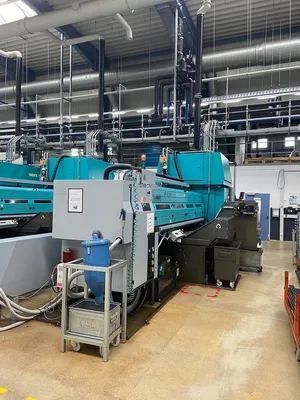

Bar Feed

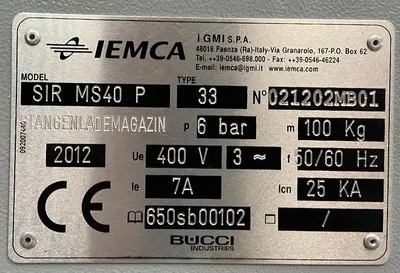

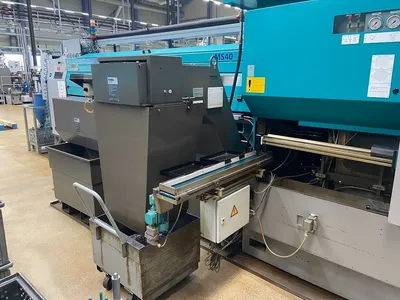

IEMCA SIR MS40/33/P magazine bar loader

Workpiece Handling
Parts chute at spindle position 6

Workpiece conveyor at spindle position 6

Synchronization unit at spindle position 6.1

Parts ejector

Coolant feed preparation through counter spindle

Back-Working
Attachment at slide position 6.2

Up to 3 fixed toolholders

Auxiliary Drive Preparation
Electrical preparation for 2 auxiliary drives with electronic shaft (positions 1–3), synchronous with main and counter spindle

Electrical preparation for 2 auxiliary drives with electronic shaft (positions 4–6), synchronous with main and counter spindle

Compatible with auxiliary drives with incremental encoder (double module)

Chip & Coolant System
Hinge-belt chip conveyor (cross type), discharge height 1200 mm, front discharge with lift pump for filter unit

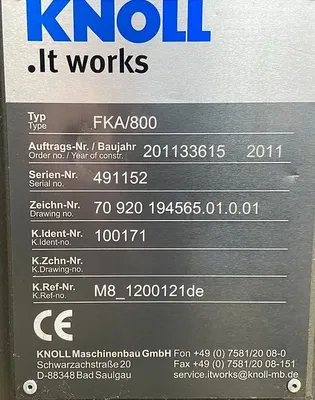

Coolant filtration unit (50 Hz):

Coolant tank: 800 L

Vacuum rotation filter: 650 L capacity

Plate heat exchanger for coolant cooling

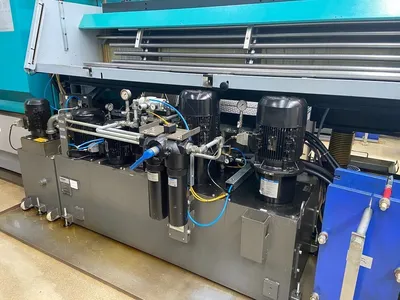

Heat exchanger pump: 80 L/min @ 7 bar

Low-pressure pump: 300 L/min @ 4 bar

High-pressure pump: 55 L/min @ 40 bar

Safety & Environmental
Automatic CO₂ fire extinguishing system with optical/thermal detection

Preparation for central exhaust system

Shut-off flap for central oil mist extraction

Control Options & NC Functions
16/16 freely programmable I/O interface

Transmit / Tracyl function (milling cylindrical paths on OD and face)

Dual transmit function for Y-axis transformation

NC option: counter spindle / polygon turning with electronic shaft

Process Monitoring
Integrated ARTIS monitoring system based on torque, current, or power evaluation

Up to 4 channels (max. 8 drives) monitoring 4 tools simultaneously at stations 1–3

Up to 4 channels (max. 8 drives) monitoring 4 tools simultaneously at stations 4–6
