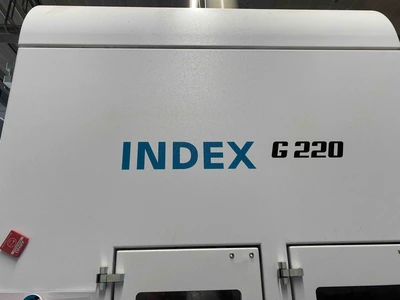

Index G220 CNC Mill Turn

Description

Index G220 CNC Mill Turn
Mfd. 2018 (Demonstration Machine)
Recommissioning 2021

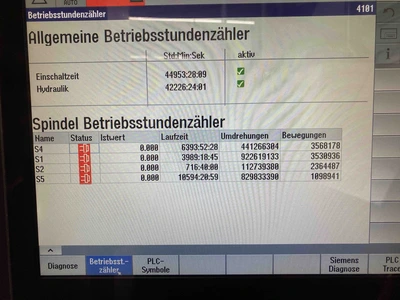

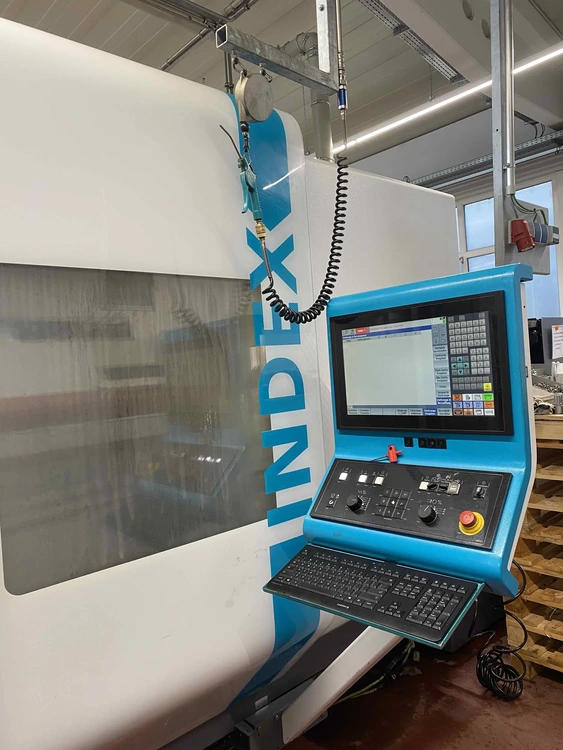

Control: Siemens 840D Solution Line, few production hours

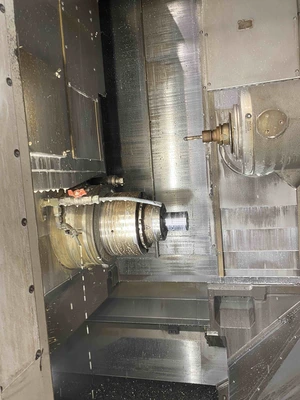

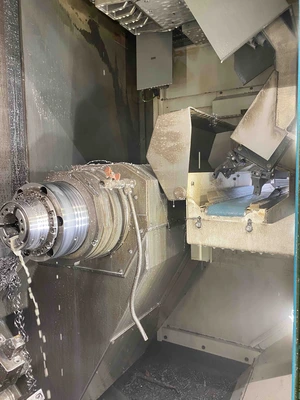

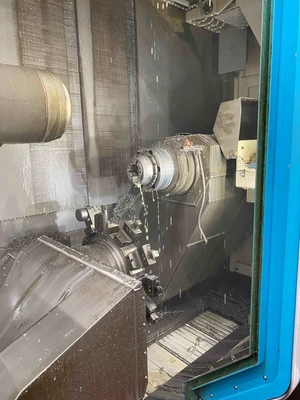

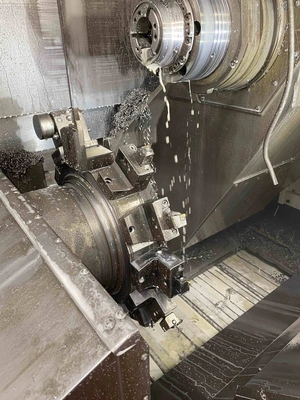

Main spindle D90
Counter spindle D90
Clamping pressure device 8 to 80 bar
Upper tool carrier with motor milling spindle HSK-T63
Axes X, Z, Y and B
Tool carrier 2 with X, Y, Z-axis and turret head with 12 stations VDI30
Tool changer with chain magazine double-row HSK holder 2 x 50 HSK 63
Tool management type "Milling machine" with relative D-number

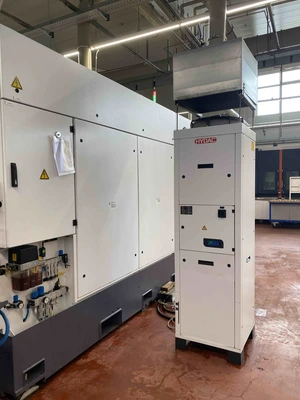

Cooling unit
Automatic work door
Light barrier for drill breakage control
5-axis simultaneous machining for motor milling spindle
Motor current-based tool monitoring system

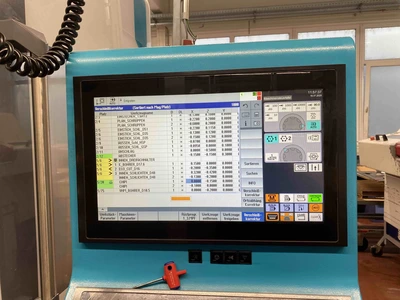

Management of tools with setup dialog (max. 250 tools)
Workpiece measuring on main or counter spindle
Measuring cycles
Follow-up center for cross slide 2
Tailstock function in the counter spindle
Electronic shaft
Grinding cycles

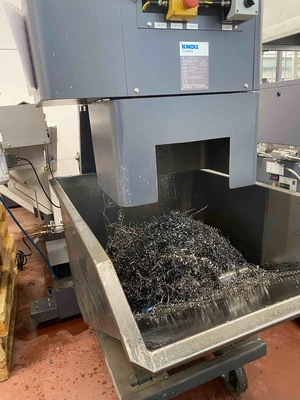

Chip conveyor
Filter

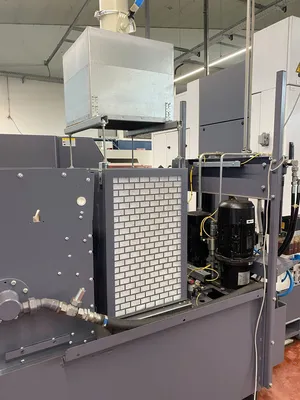

Coolant system ECO-Fluid 3 pumps 3, 8, 20-80 bar
UNIMAG4
Portal removal device
Transport belt

No clamping devices, no tool holders, ex location
