2019 Doosan Puma TT2100SYY

Description

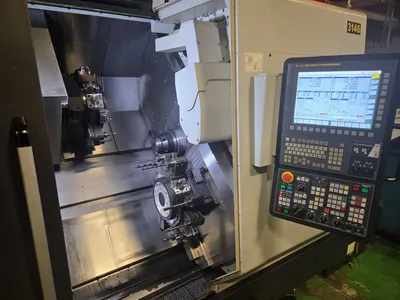

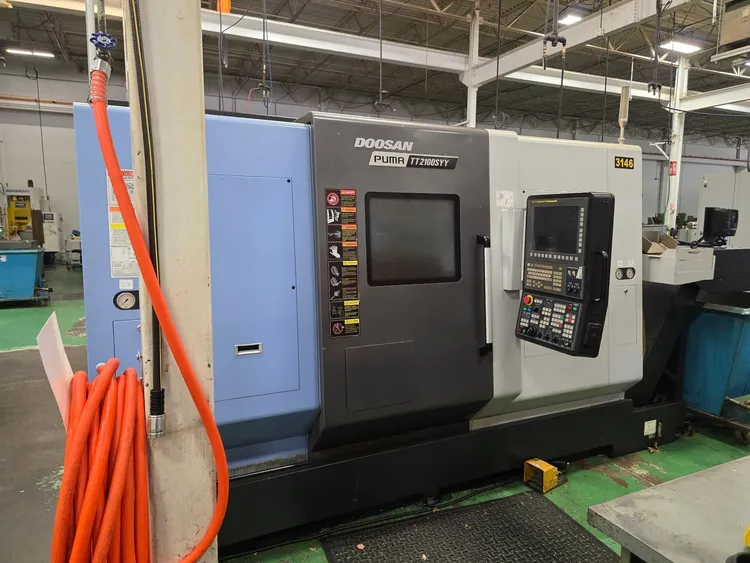

Doosan Puma TT2100SYY
Mfd. 2019
Equipped as pictured

Hours: 863

Specifications
SWING OVER BED 9.05"
MAX CUTTING DIAMETER 9.05"
DISTANCE BETWEEN CENTERS 38.5"
X-AXIS TRAVEL 6.5"
Y-AXIS Yes
Y-AXIS TRAVEL 3.93"
Z-AXIS TRAVEL 27.5"
C-AXIS INDEXING FULL CONTOURING C-AXIS
CHUCK SIZE 8"
BAR CAPACITY 2.625"
SPINDLE NOSE A2-6
SPINDLE MOTOR 35 hp
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min.
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 8"
SUB SPINDLE - BAR CAPACITY 2.56"
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 25 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 28.7"
TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 10 hp
TURRET 2 CAPACITY 12
TURRET 2 - X-AXIS TRAVEL 6.5"
TURRET 2 - Z-AXIS TRAVEL 27.56"
Dimensions 93" X 153" (W/CONVEYOR - 186") X 88.6"H
Weight 20,940 LBS
Equipped With
FANUC OiTF CNC CONTROL
DOOSAN EZ GUIDE i PROGRAMMING

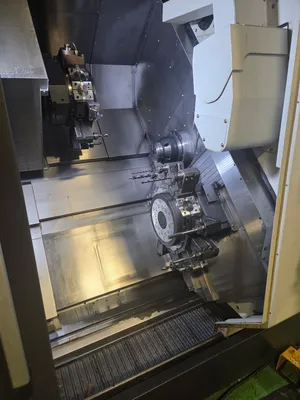

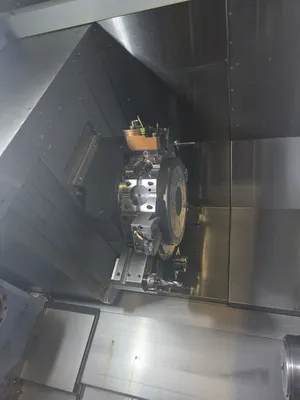

TWIN 12 POSITION TURRETS UPPER AND LOWER, W/24 POSITION INDEXING ON EACH TURRET WITH BASE MOUNT TOOLING SYSTEM
Y-AXIS ON BOTH TURRETS
(2) INTEGRAL SPINDLES
FULL CONTOURING C-AXES ON BOTH SPINDLE
MILL/DRILL ON UPPER AND LOWER TURRETS
PARTS CATCHER LEFT AND RIGHT
PROGRAMMABLE PARTS UNLOADER
PARTS CONVEYOR
(2) X-AXIS LIVE HOLDERS
(2) Z-AXIS LIVE HOLDERS
STANDARD FACTORY STATIC TOOLING
DOOSAN TOOL LOAD MONITORING SYSTEM
AIR BLAST SYSTEM FOR CHUCK CLEANING
