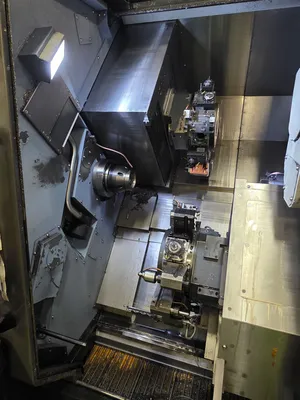

Used 2019 DOOSAN PUMA TT-2100SYY | CNC Lathes Multi Axis

Description

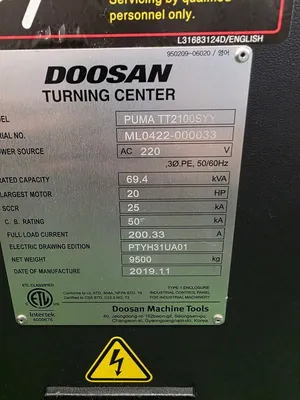

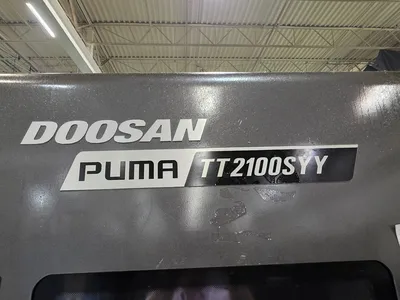

Doosan Puma TT2100SYY
Mfd. 2019
ML0422-000033

Ran less than one shift.
Hours: 8491

Live tools do not come with machine. Only static tools.

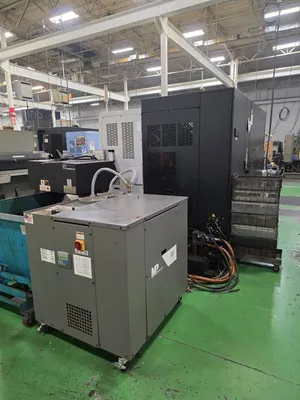

MP SYSTEMS 1000 PSI HIGH PRESSURE COOLANT

Specifications
SWING OVER BED 9.05"
MAX CUTTING DIAMETER 9.05"
DISTANCE BETWEEN CENTERS 38.5"
X-AXIS TRAVEL 6.5"
Y-AXIS Yes
Y-AXIS TRAVEL 3.93"
Z-AXIS TRAVEL 27.5"
C-AXIS INDEXING FULL CONTOURING C-AXIS
CHUCK SIZE 8"
BAR CAPACITY 2.625"
SPINDLE NOSE A2-6
SPINDLE MOTOR 35 hp
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min.
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 8"
SUB SPINDLE - BAR CAPACITY 2.56"
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 25 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 28.7"
TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 10 hp
TURRET 2 CAPACITY 12
TURRET 2 - X-AXIS TRAVEL 6.5"
TURRET 2 - Z-AXIS TRAVEL 27.56"
Dimensions 93" X 153" (W/CONVEYOR - 186") X 88.6"H
Weight 20,940 LBS
Equipped With

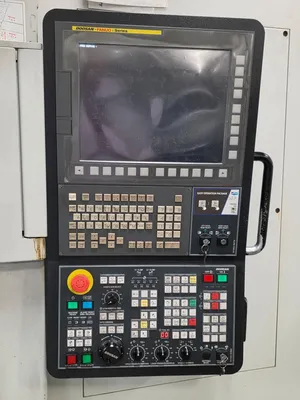

FANUC OiTF CNC CONTROL
DOOSAN EZ GUIDE i PROGRAMMING

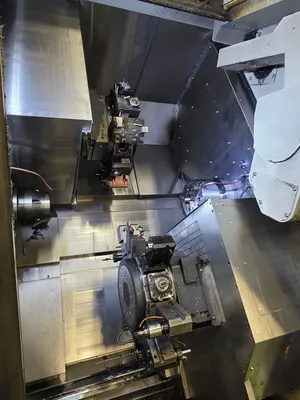

TWIN 12 POSITION TURRETS UPPER AND LOWER, W/24 POSITION INDEXING ON EACH TURRET WITH BASE MOUNT TOOLING SYSTEM
Y-AXIS ON BOTH TURRETS
(2) INTEGRAL SPINDLES
FULL CONTOURING C-AXES ON BOTH SPINDLE
MILL/DRILL ON UPPER AND LOWER TURRETS
PARTS CATCHER LEFT AND RIGHT
PROGRAMMABLE PARTS UNLOADER

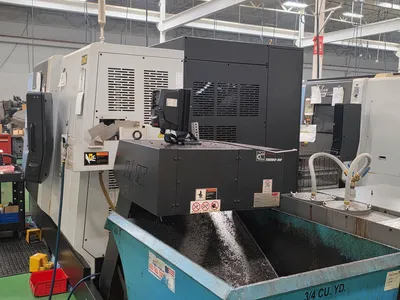

PARTS CONVEYOR

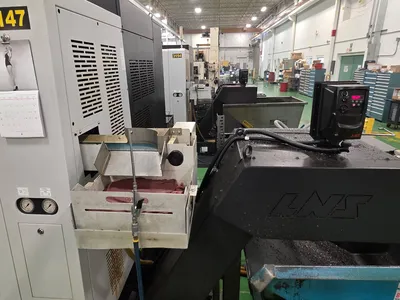

BAR FEED INTERFACE
STANDARD FACTORY STATIC TOOLING
DOOSAN TOOL LOAD MONITORING SYSTEM
AIR BLAST SYSTEM FOR CHUCK CLEANING
