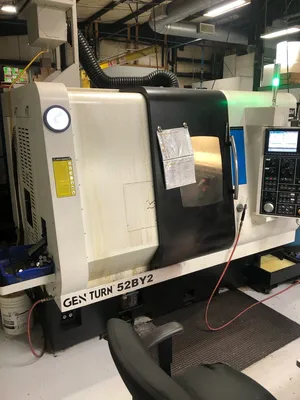

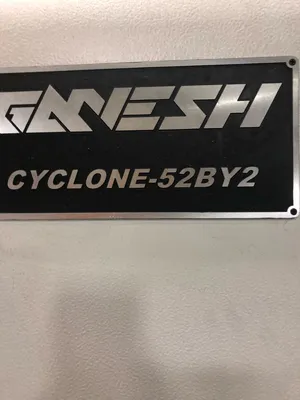

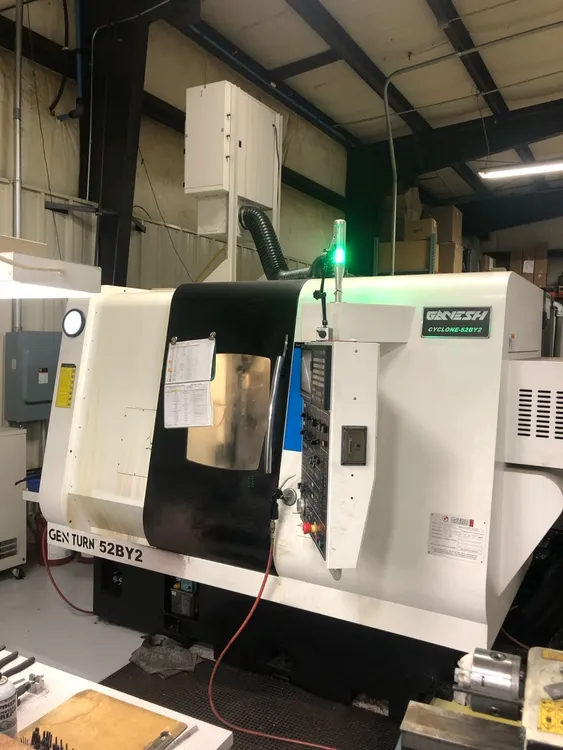

Ganesh Cyclone--52BY2

Description

Ganesh Cyclone--52BY2
9-Axis Mill/Turn Lathe with 12-Angle Tools

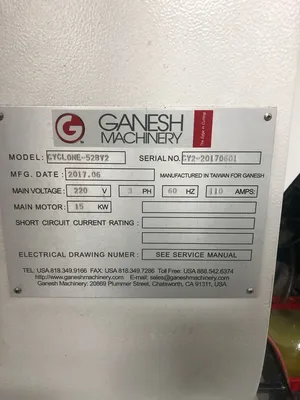

Mfd. 2017
Axes Configuration:
9-axis machine including dual Y-axes and a B-axis for complex mill-turn operations

Main Spindle:
15 HP, 6,000 RPM
2.0" bar capacity

Sub-Spindle:
15 HP, 6,000 RPM
Allows full part transfer and back-end operations

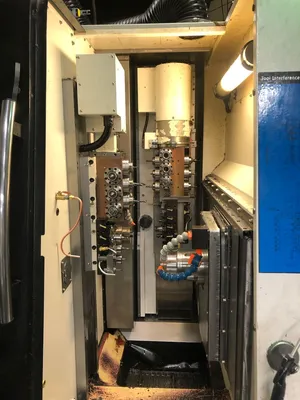

Tooling System:

36 total tool positions

12-station B-axis turret with live tooling

Angular milling/drilling capability

Turning Capacity:

Max turning diameter: 2.008"

Max turning length: 9.84"

Control:

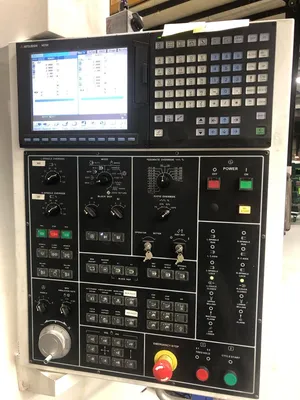

Mitsubishi M800 control with high-speed processing and advanced programming tools

Automation & Support Equipment:

Edge 551 magazine-style bar feeder

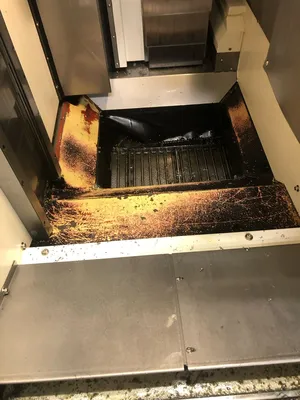

Chip conveyor

Parts catcher

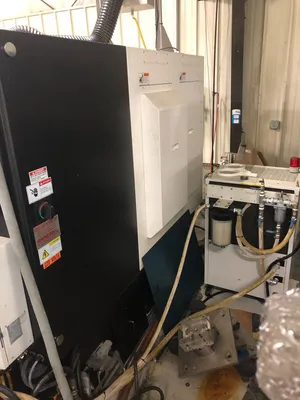

Mist oil filtration system

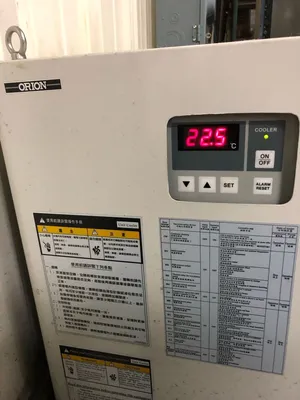

Spindle oil chiller

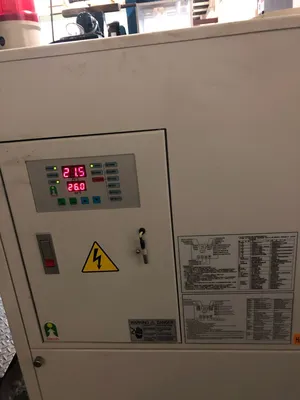

Cutting oil chiller
