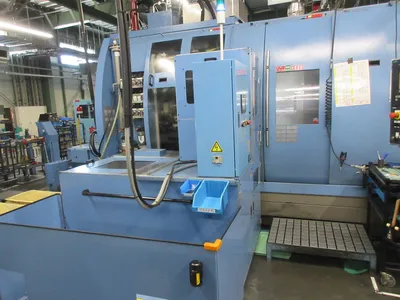

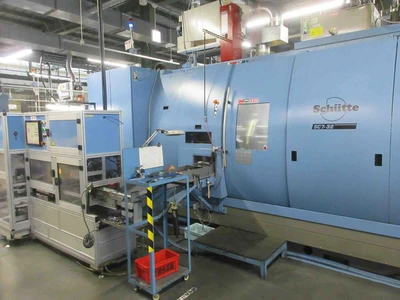

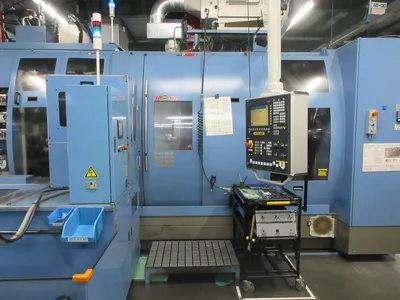

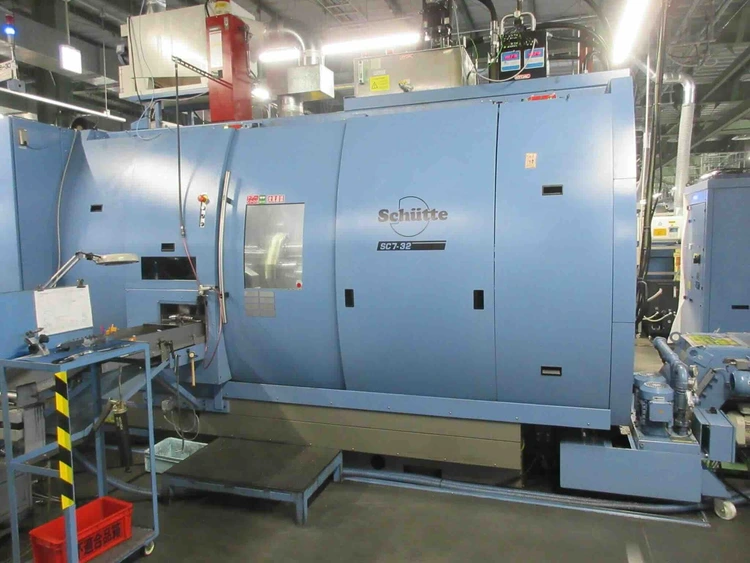

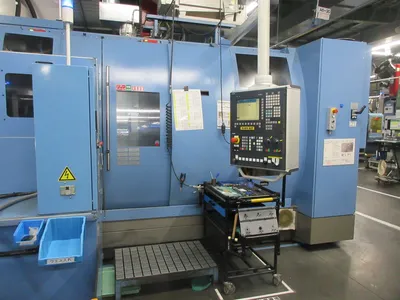

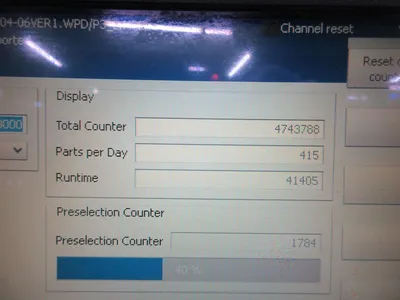

Schutte SC7-32 CNC Multi-Spindle

Description

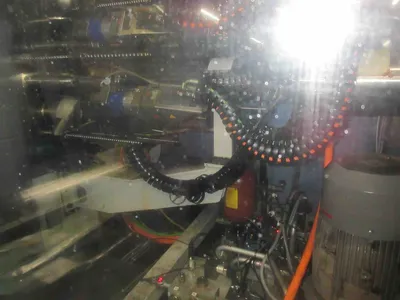

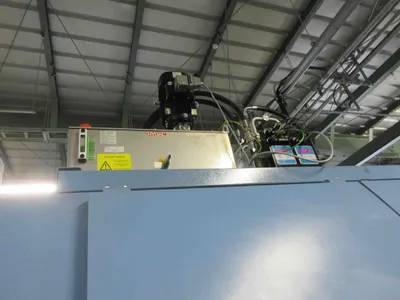

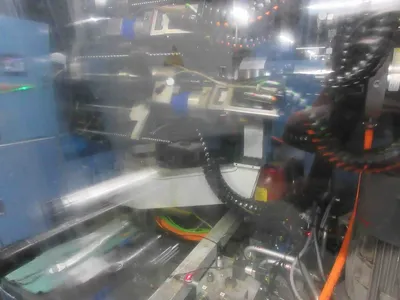

Schutte SC7-32 CNC Multi-Spindle
Year: 2017

Configured as Chucker

・6 spindles (7 stations [POS]: spindle, collet, workpiece indicator)
・POS1: Work loading gun
・POS3: Rotating spindle (for removable rotating tool)
・POS4: Work unloading
・POS5: Sub spindle (indexing spindle)
・POS6: Workpiece discharge system (conveyor and discharge chute)

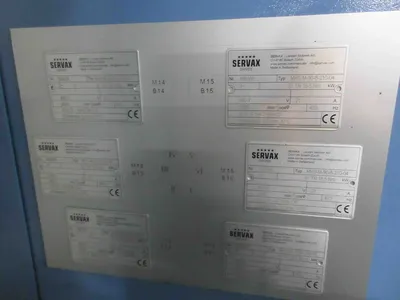

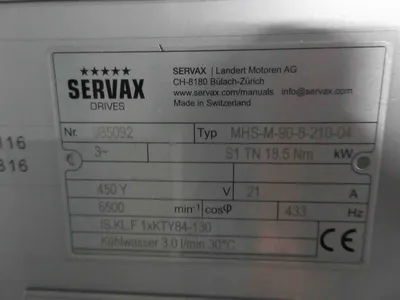

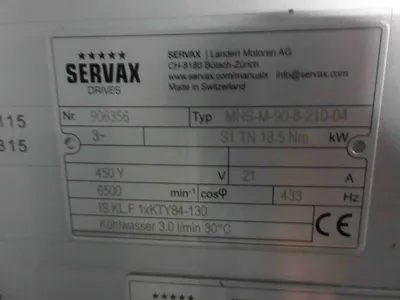

・Maximum spindle speed: 8000 min⁻¹ (by ARTIS)
・QC collet chuck (by HAINBUCH)

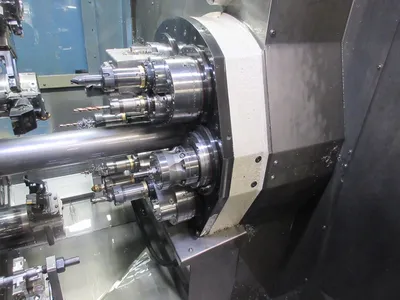

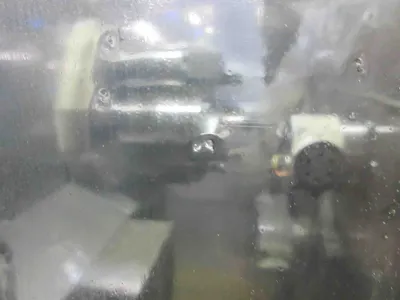

[Main Unit - Tooling Specifications]
・POS1 Spindle: 2-axis controlled external HSK40
POS1 Arm Loader: 1 - single-face loader, 2 - gripper head
・POS2 Spindle: 1 - fixed HSK40, 2 - rotating HSK32
POS2 Loader: 1 - 2.CAPT C4
・POS3 Spindle: 1 - rotating spindle HSK40
POS3 Loader: 1 - 2.CAPT C4
・POS4 Spindle: 2 - fixed spindle HSK40
POS4 Loader: 1 - 2.CAPT C4
・POS5 Spindle: 2 - rotating HSK32
POS5 Loader: 1 - 2.CAPT C4
・POS6 Ejector: 2 - CAPT C5
・Spindles, tooling, fixed collet chucks, indicators, Sky Vision, stoppers

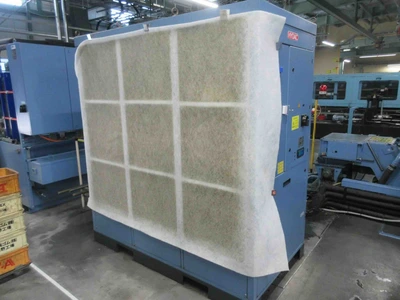

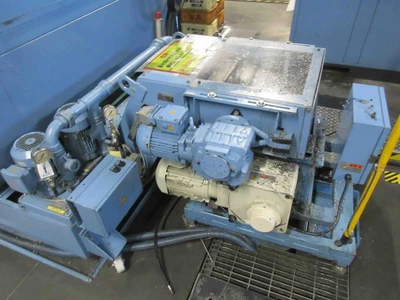

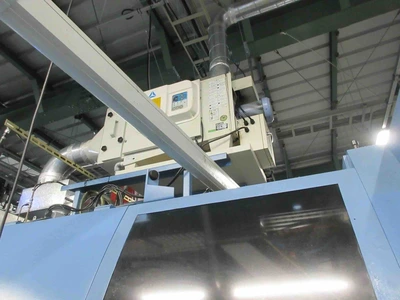

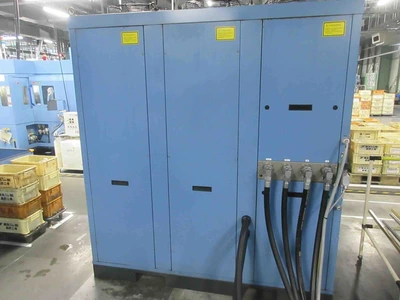

[Oil Chiller Specification] (by HYDAC)
Model: RFCS-G7-58000-W-L-R24-4-1
Serial No.: 2300016687
Refrigerant: R407C

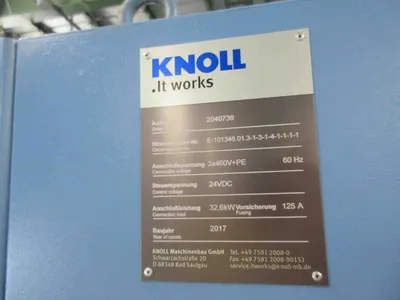

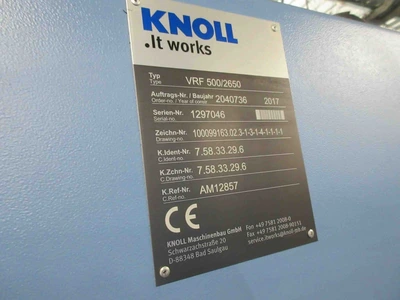

[Coolant Tank Specification] (by KNOLL)
Model: VRF500/2650 (with 50μ filter)
Serial No.: 1297046
Coolant Pump: 3 systems (3 bar, 30 bar, 60 bar)

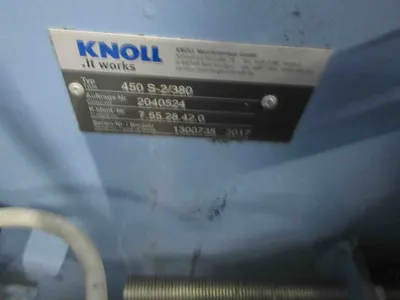

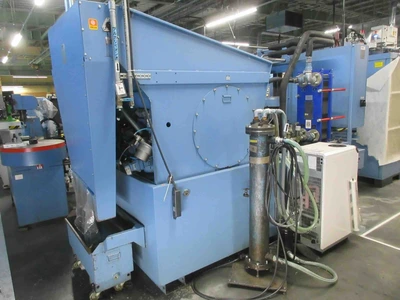

[Chip Conveyor Specification] (by KNOLL)
Model: 450 S-2/380
Serial No.: 1296844

Weight: 17,500 kg　　
Primary Power Supply: 3-phase 480V, 60Hz, 91A
[Main Unit - Special Specifications]

・Unconnected power safety transformer (200V → 480V/60Hz)
・Transformer for coolant tank (200V → 480V/60Hz)
・Power control: Automatic startup unit (initial operation timing)
・Hydraulics (by ASYMA): Number of solenoid valves/O

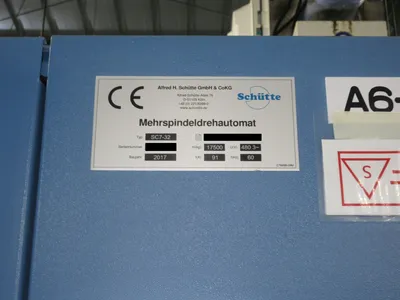

Schuette CNC Multi-axis Automatic Lathe
Main Unit: CNC 6-axis Turning Center (Chuck-type)
Model: SC7-32 (MP-SC7-32-1307)
Year: 2017
Weight: 17,500kg Power Supply: Three-phase 480V 60Hz 91A
[Main Unit Special Features]

6 main axes + 7 sub (POS7 backspindle, collet, work ejector)
POS1 work loading magazine
Front cover modification (for loading with short work attachment)

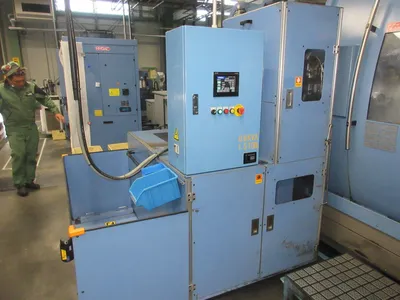

Work supply equipment (manufactured by Toyokuni Engineering)
POS4 work reverse-holding & turret function
POS4, POS6 main collet open/close mechanism additional feature

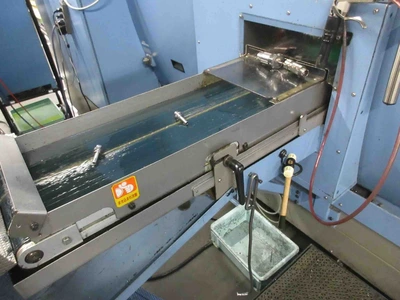

Rear work ejection function (conveyor, ejection hand)
8-channel electrical tool breakage detection system (ARTIS)
QC collet chuck (HAINBUCH)
Main unit isolation transformer (200V⇒480V/60Hz)
Chiller/coolant tank transformer (200V⇒480V/60Hz)
Reinforcement seal types - Dedicated paint - Automatic fire extinguisher (manufactured by Initia)

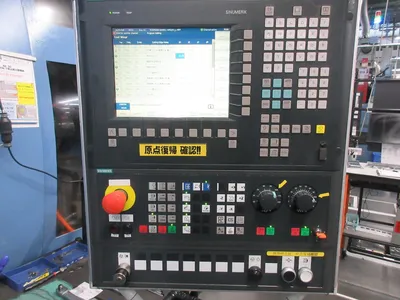

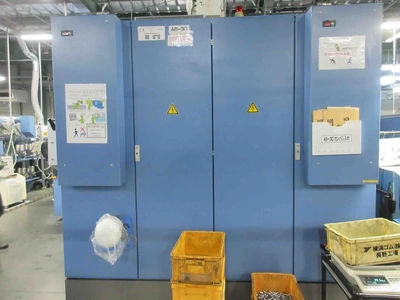

Control panel (Amano) electrical connection I/O

[Main Unit Tooling Features]

POS1 tool post: 1-2 fixed holder HSK40 / POS1 cross: 1-rotation, 2-gripper hand
POS2 tool post: 1-HSK40 fixed, 2-HSK32 rotation / POS2 cross: 1-rotation, 2-CAPT C4
POS3 tool post: 1-2 fixed holder HSK40 / POS1 cross: 1-rotation, 2-CAPT C4
POS4 tool post: Work holding removal chuck / POS1 cross: 1-grip, 2-CAPT C4
POS5 tool post: 1-HSK40 fixed, 2-HSK32 rotation / POS2 cross: 1-rotation, 2-CAPT C4
POS6 cross: 1-rotation, 2-CAPT C5
POS7 tool post: Back spindle, pull-type collet chuck, injector, stopper

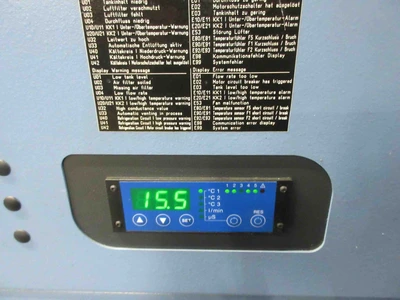

[Oil Chiller Features] (HYDAC)
Model: RFCS-G7-58000-W-L-R24-4-1
S.no.: 2300016687 Refrigerant: R407C
[Heat Exchanger with Coolant Tank Features] (KNOLL)
Model: VRF500/2650 (50μm filter attached)
S.no.: 1297046 Coolant Pump: 3 pressure types (3bar, 30bar, 60bar)

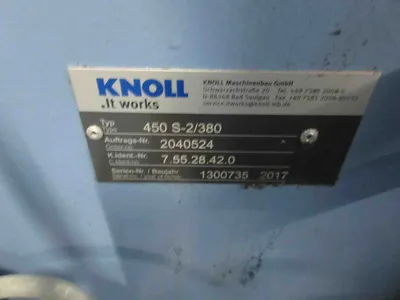

[Chip Conveyor Features] (KNOLL)
Model: 450 S-2/380
S.no.: 1296844
