Used 2007 ELMA LRS700-7VTRLS3 | Parts Washers

Description

Elma Parts Washer, Model LRS700-VTRLS3

Mfd. 2007

Precision Stainless Steel,

Ultrasonic,

Conveyor Type,

With 7 wash tanks

Vacuum dryer

Precision ultrasonic cleaning machine from washing laser and high vacuum parts with oil and particle-free requirements

Material Compatibility:
Materials: Aluminum, copper, stainless steel.
Various geometries and weights with a maximum batch weight of 85 kg.

Cleaning Items:
Components/parts are mounted and clamped inside washer system baskets (dimensions: 450 x 632 x 500 mm)

Contamination & Cleaning Result:
Contamination: Residues from processing emulsions and other manufacturing residues.
Cleaning Result: Components are required to be free of oil, abrasions, detergent residues, and dry, as confirmed by residual dirt analysis.

Batch Weight:
Maximum: 85 kg.

Cycle Time:
Variable cycle time based on testing, with a standard of approximately 6 minutes. Complex parts may require extended drying time.

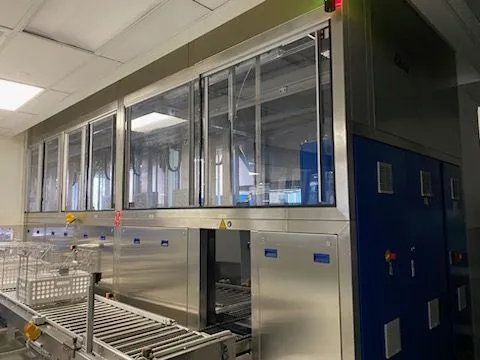

Under Power in a clean room
