Tsugami SS207-5AX CNC Screw Machine (LaserSwiss)

Description

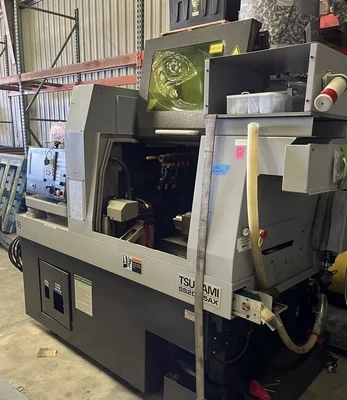

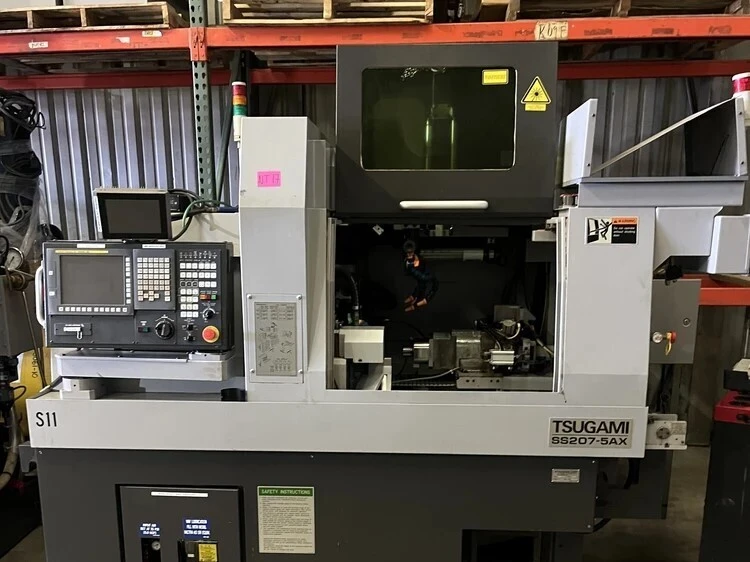

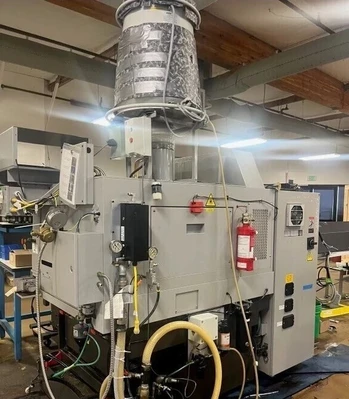

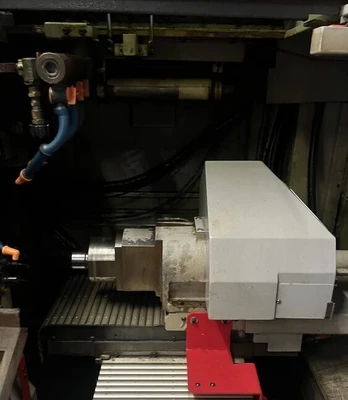

Tsugami SS207-5AX CNC Screw Machine
Mfd. 2015
robust, precise, with Fanuc control,
250W fiber laser,
simultaneous axis control,
parts catcher/conveyor, and more.
Ideal for advanced machining.
Specifications
Maximum Machining Dia. .787"
Maximum Machining Length 8.26"/Chucking
Main Spindle Speed 200~10,000
Rotary Tool Spindle Speed 200~8,000
Back Spindle Max. Dia. .787"
Back Spindle Front Ejection Maximum Length 3.2"
Back Spindle Speed 200~10,000
Rapid Traverse Rate 32 M/min

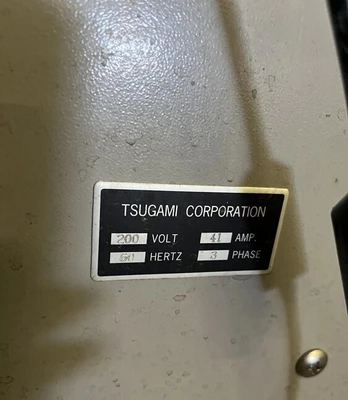

Input Power 6KVA
Center Height 39.37"
Weight 7,260 lbs
Motors
Main Spindle 3/5 hp
Back Spindle 2/3 hp
Rotary Tool 1 hp
Coolant 0.5 hp
B1 Axis Tool Spindle Position
Positioning Angle 0° - 110°
Positioning method Servo controlled
Number of tool positions 6 (3 main and 3 sub)
Rotary tool speed 5,000 rpm
Main spindle tool collet ER16
Sub spindle tool collet ER11
Positioning angle 0 - 110 degree
Laser 250W Fiber
Cooling System Water Cooled
Laser Enclosure Classification Class 1
Max Cutting Speed 19.685"/sec
Wavelength 1070 +/- 10nm
Frequency 2-20kHz
Pulse Width 0-CW
Power 25-250w
Nozzle Standoff Adjustment NC controlled
Variable Gas Pressure 5 to 350 psi
# of Gas Connections 2
Through Work Piece Coolant to 246 psi
Coolant as Fed From Front of Part to 1,000 psi
Tube Size Constraints
250W Fiber
Maximum Wall Thickness 0.039"
Minimum OD 0.080"
Maximum OD 0.787"
Minimum OD: ID Ratio 3:1
Optic Specifications
Focal Length (mm) f=100
Beam Reduction (Optional) .5/.7
Beam Expansion (optional) 1.4/2.0/2.8
Exchangeable protection glass Y
Cutting Nozzle Diameter 1mm to 3mm
Equipped With

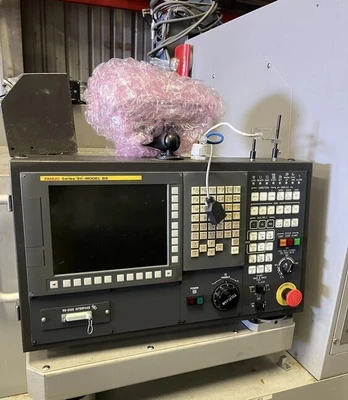

Fanuc 31i-B5 CNC Control w/ 10.4" LCD
250 Watt SPI Fiber Laser System
Rigid Tapping
Simultaneous all axes control
AC servo axes control
Main spindle Collet Chuck unit (S&M TF25)
Back spindle Collet Chuck unit (S&M TF25)
Parts catcher with exit conveyor and basket (max part length = 3.15")
Cutting oil tank with coolant tank level detector (40 Gal. Capacity)
Sub spindle air blast
Integral motor driven guide bushing unit
Door interlock with switches
Main spindle C axis with brake
Sub spindle C axis with brake
Spindle Cooling for Main, Sub and Guide Bushing Motors
Air/Oil pressurized driven tool gearbox units
Air pressurized guide bushing unit
Centralized lubrication system w/oil level detector (0.21 Gal. Capacity)
Leveling bolts & pads
Hand tools (spanners, wrenches, etc.)
One complete set of manuals
Machine test report
Parameter list
(8) ½” Square turning tool positions main spindle
(3) Driven tool positions main spindle, cartridge type
(8) ID positions, main or sub
(4) Static back working stations- ID or Turning
(2) Main spindle deep hole drill positions (max 100mm)
Up to 38 tool positions are possible
