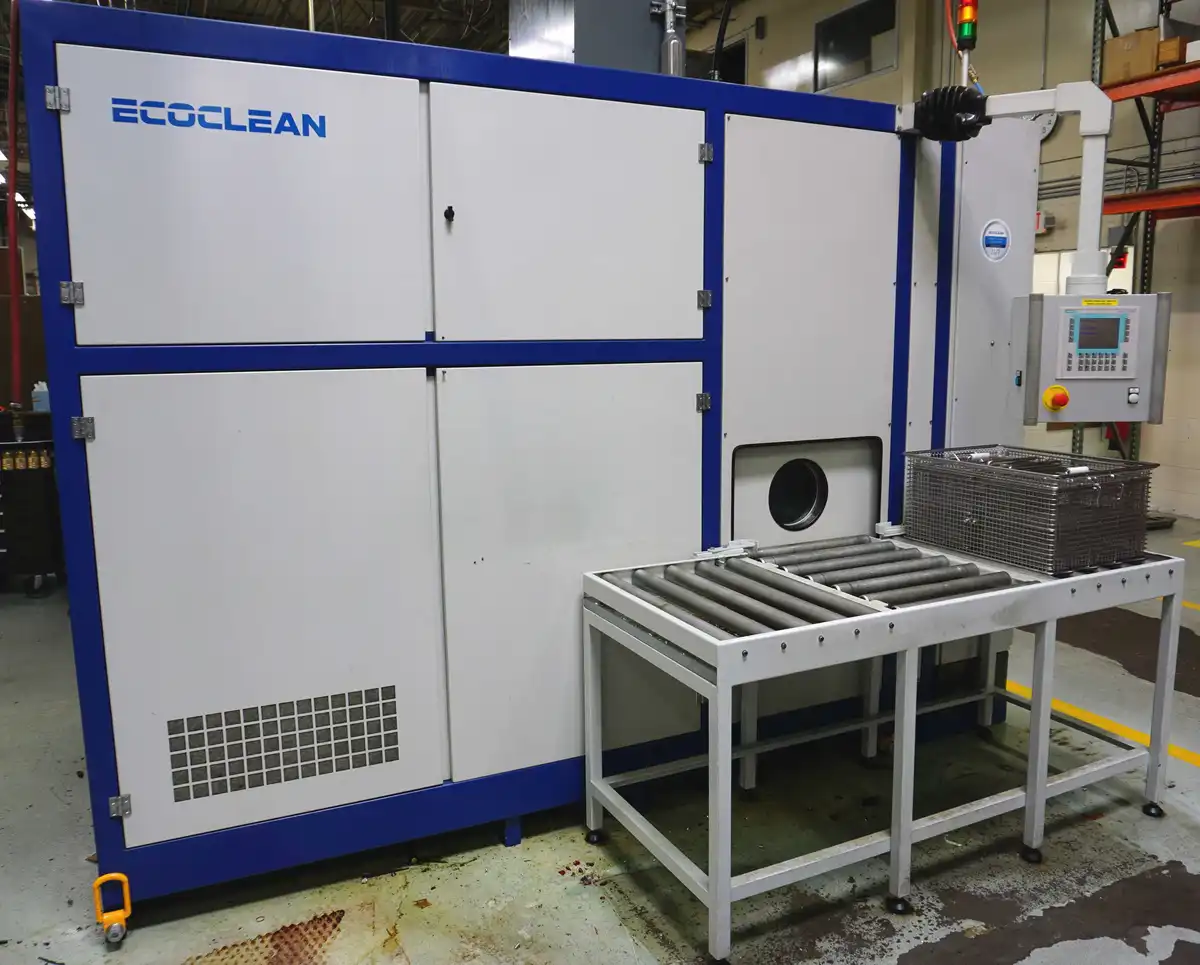

Durr Ecoclean Universal 81W Aqueous Parts Washer

Description

Durr Ecoclean Universal 81W Aqueous Parts Washer

Year: 2014

SN: CK-4900100153

Basket size approx.: 670 x 480 x 300 mm

Max batch weight: 150 kg

Total fluid capacity: 1300 ltr

Weight unfilled: 3500 kg

Dimensions: 3200 L x 1800 W x 2300 H mm

General operation description:

Parts are placed into a basket and loaded into the machine.
Wash program is selected and the door is closed.
Press Start.
Wash fluid is pumped into the parts chamber to wash the parts.
Wash fluid is pumped out of the parts chamber and back into the wash fluid holding tank.
Rinse fluid is pumped into the parts chamber to rise the parts.
Rinse fluid is pumped out of the parts chamber and back into the rinse fluid holding tank.
Hot air is blown through the parts chamber to dry the parts.
Optional vacuum drying to further dry the parts.

Options:

NO – third flood tank for additional rinsing or preservation
NO – waste water-free operation due to integrated Aquaclean treatment unit.
YES – High performance IFW (HL-IFW) with spray system
NO – ultrasonic unit
YES – Vacuum drying
YES – Cartridge filter Flood tank 2
NO – automatic conveyor
NO – automatic lid placement
NO – ion exchanger for demineralization
