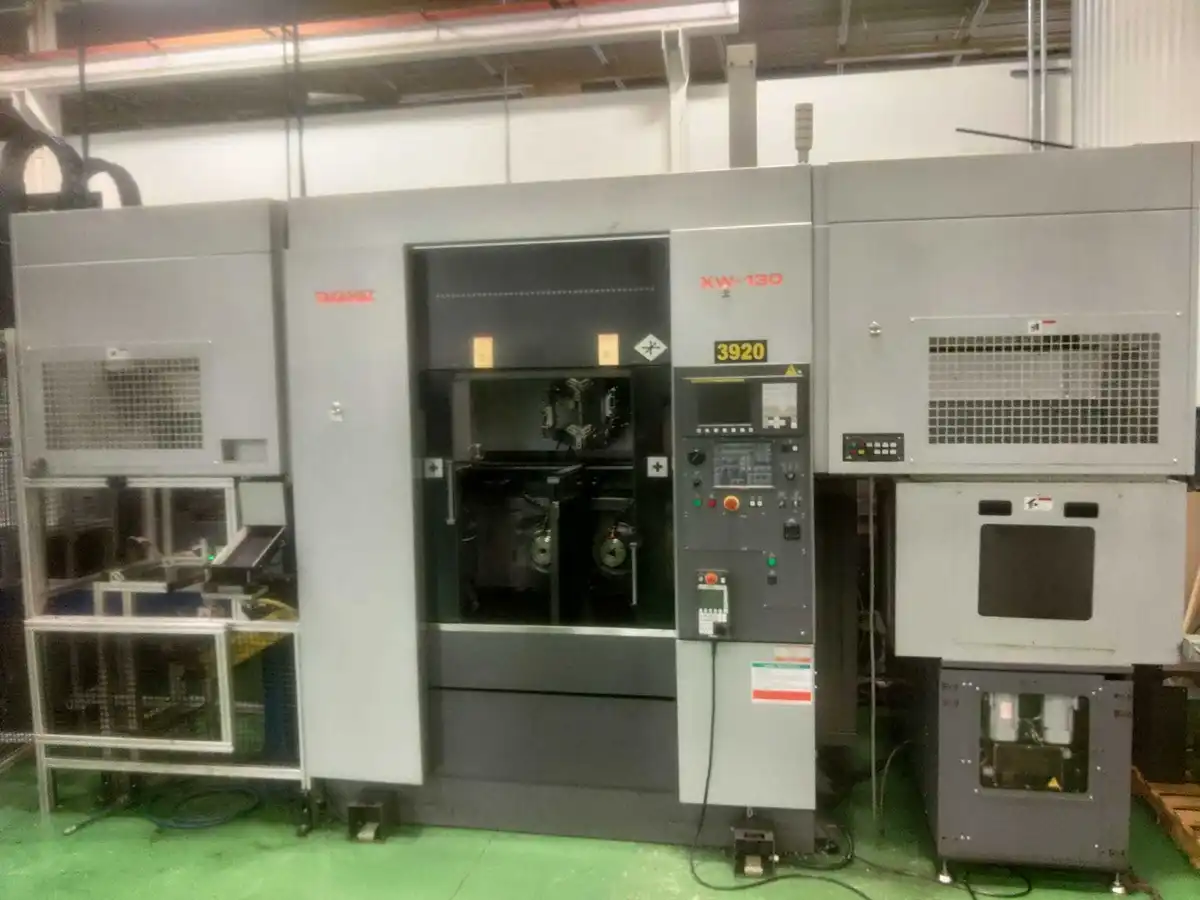

TAKAMAZ XW-130

Description

Takamaz XW-130
CNC Lathe
Mfd. 2019

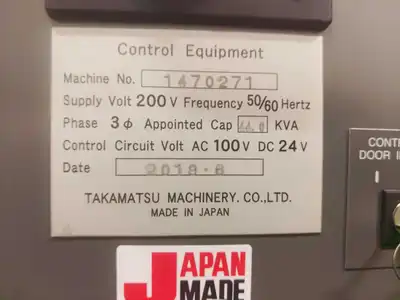

SN: 1470271
2-spindle 2-turret precision lathe
Chuck size: Collet, 8 × 2 inch
Spindle Spindle bearing I.D.: φ100 mm
Spindle speed: Max. 4,000 min-1

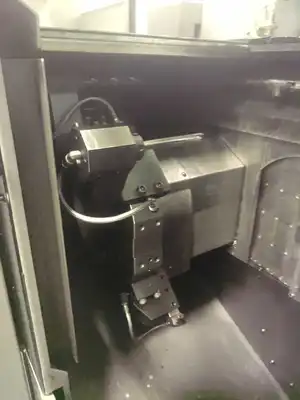

Tool post Type: 8-station turret × 2
Max.stroke: X:150, Z:160 mm
Rapid traverse rate X:24, Z:24 m/min
Spindle motor: AC11/ 7.5 × 2 kW
Controller: TAKAMAZ & FANUC 0i-TF

Machine width with loader spec.

Item【Loader specifications】 Ability Unit
ΣiGTH150
Workpiece diameter (Reference): φ150 mm
Workpiece length (Reference) 50 mm
Max. load capacity 3.0 kg
Rapid traverse rate X:35, Y:125, Z:170 m/min

The length depends on the workpiece diameter. If the workpiece weighs more than the above, it cannot be loaded, even within the size range described.
