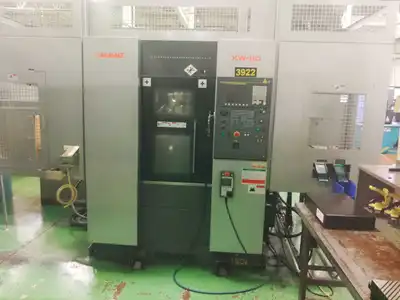

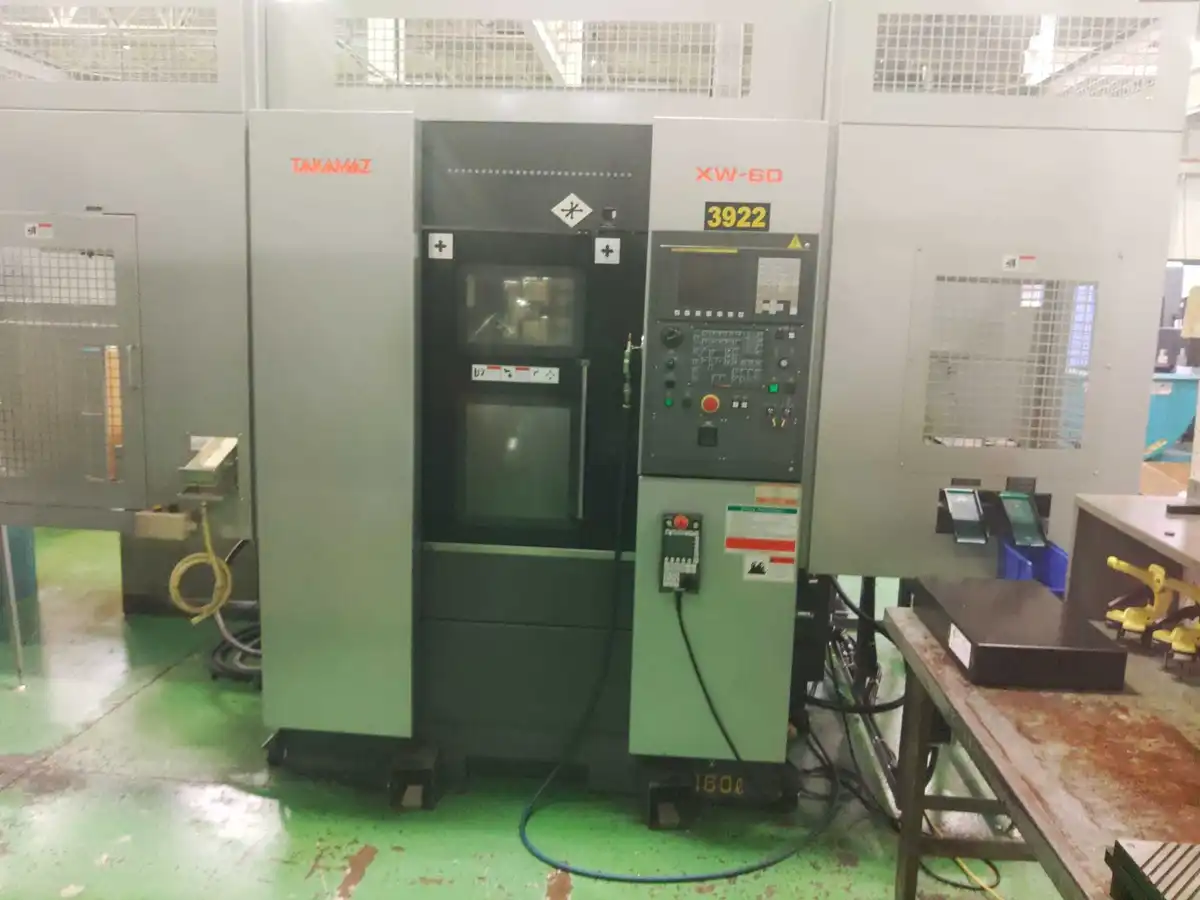

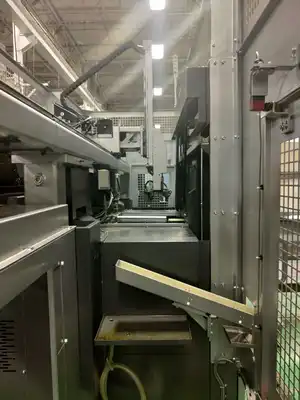

Takamaz XW-60

Description

Takamaz XW-60
CNC Lathe
Mfd. 2020
SN: 1540166

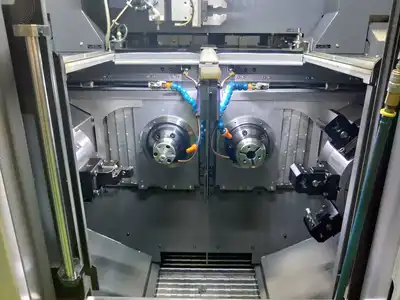

2-spindle, 2-turret Precision Lathe

Chuck size: Collet, 6 (5 Opt.) × 2 inch
Spindle Spindle bearing I.D.: φ75（φ65 Opt.) mm
Spindle speed: Max. 4,500 (6,000 Opt.) min-1

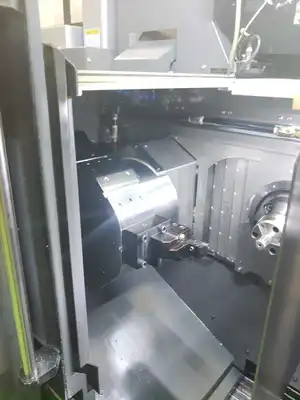

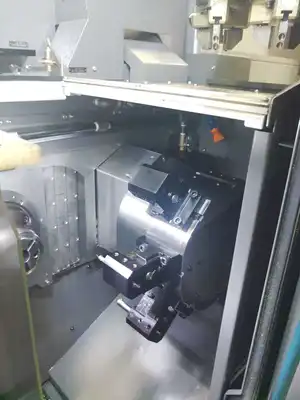

Tool post Type: 8-station turret × 2 10-station turret × 2
Max.stroke: X:125, Z:140 mm
Rapid traverse rate X:21, Z:18 m/min
Power tools Tool storage capacity: - 10（One side） pcs.
Rotation speed: - 4,000 min-1
Capabilities: - φ13　M4~M10 mm
Spindle motor: AC7.5 / 5.5 × 2 kW
W　×　L: 1,595 (1,950 ※) × 2,005 1,695 (1,950 ※) × 2,005 mm
Controller: TAKAMAZ & FANUC 0i-TF

Machine width with loader spec.

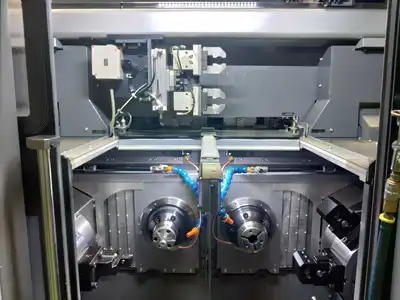

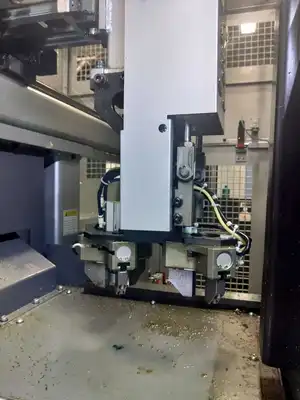

Item【Loader specifications】 Ability Unit
ΣiGTH60 ΣiGTH60 (High speed type)
Workpiece diameter (Reference): φ60, φ55(φ60) mm
Workpiece length (Reference) 60 mm
Max. load capacity 1.0 kg
Rapid traverse rate X:45, Y:125, Z:120, X:35, Y:170, Z:170 m/min

The length depends on the workpiece diameter. If the workpiece weighs more than the above, it cannot be loaded, even within the size range described.
