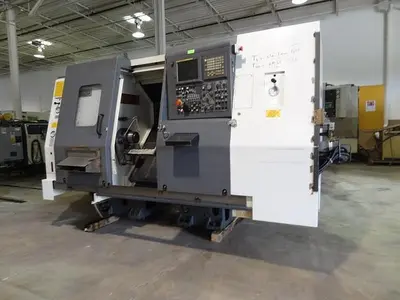

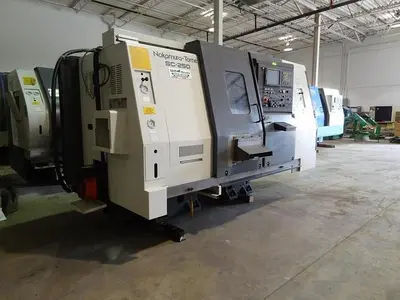

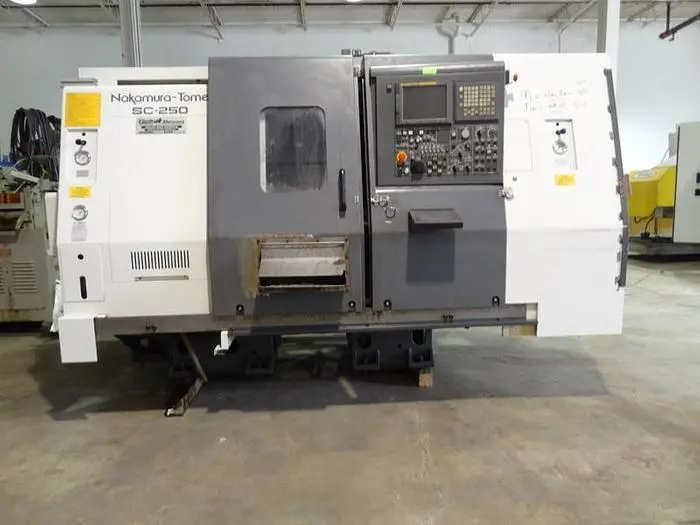

Nakamura SC-250

Description

Nakamura SC-250
Mfd. 2005

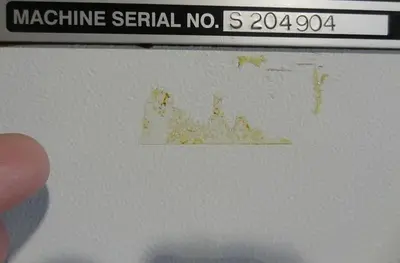

SN: S204904

Fanuc 18i-TB Control
Sub Spindle Option
Bar Feed Interface

Travels
Slide Travel X Axis: 6.988"
Slide Travel Z Axis: 19.685"
Slide Travel Y (Sub Spindle) Axis: +/- 1.614"
Turning Capactiy:
Maxiumum Turning Diameter: 11.8"
Maxiumum Turning Length: 19.7"

Spindle:
Main Spindle Maxiumum Speed: 5,000 RPM
Main Spindle Drive Power: 20/25 HP
Chuck:
Chuck Size: 8" (EQUIPPED COLLET NOSE AND COLLET)
Bar Capacity: 2"

Turret:
Dodecagonal
Turret Tool Capacity: 12

Size and Weight:
Floor Space (Length, Width, Height): 102.28" x 65.79" x 71.46"
Weight: 8,377 Pounds
